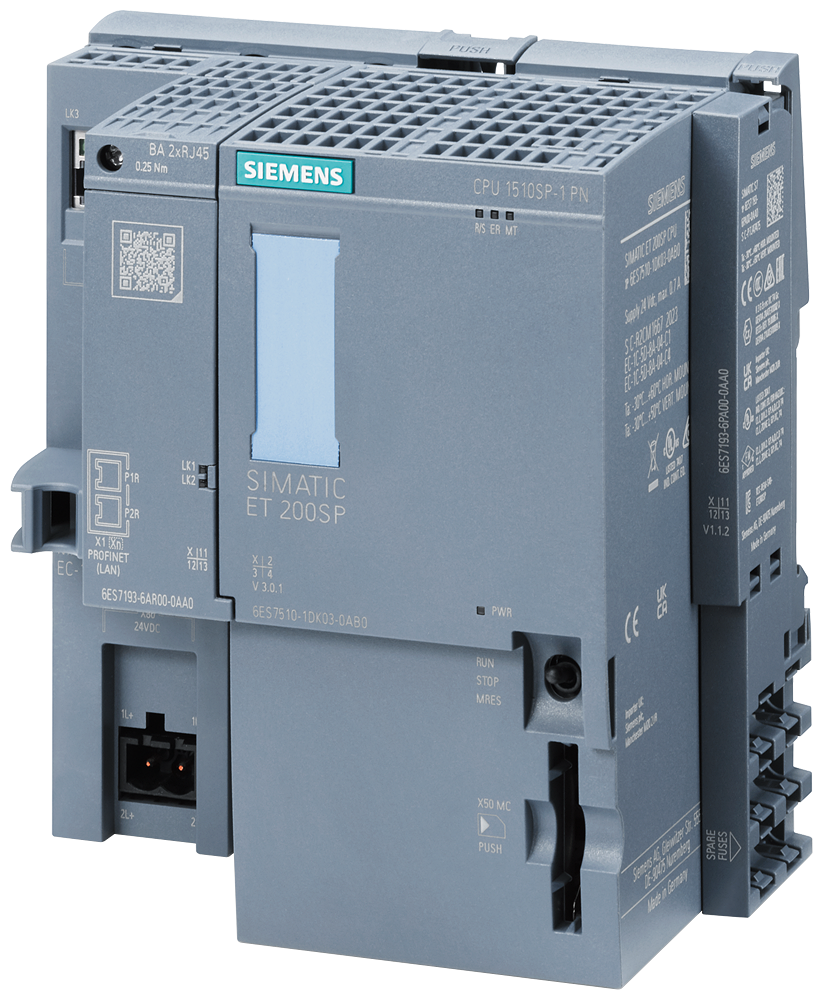

Siemens 6ES7510-1DK03-0AB0 SIMATIC S7-1500 CPU 1510SP-1 PN 200KB/1MB PROFINET Programmable Logic Controller

The Siemens 6ES7510-1DK03-0AB0 is a SIMATIC S7-1500 CPU 1510SP-1 PN for the ET 200SP system, combining 200 kbyte of program memory with 1 Mbyte of data memory. Its integrated PROFINET IRT interface includes a 3-port switch and 6 ns typical bit-operation performance. The CPU requires a SIMATIC Memory Card and ships with server module 6ES7193-6PA00-0AA0 included for the ET 200SP rack.

Technical Specifications

Certifications & Standards

• GDS support (certificate management)

Selection Notes

The 200 kbyte/1 Mbyte memory split and 6 ns bit-processing time put this CPU above the smaller 1510SP-1 variants for programs with larger data blocks or more instances of retentive data. The 3-port integrated PROFINET switch means the CPU itself can line-connect two downstream devices without an external switch, which matters for compact ET 200SP stations with limited panel space. Multi-hot swapping lets I/O modules be replaced without dropping the whole station offline, useful where a single point of maintenance cannot justify stopping the line. Isochronous mode is only available over PROFINET with a minimum OB 6x cycle of 500 microseconds, so it fits synchronized motion or packaging applications but is not relevant for simple discrete control.

Applications

Distributed I/O control of ET 200SP stations where PROFINET IRT and isochronous mode are required, such as synchronized packaging or converting lines. Suited to installations needing multi-hot swapping for module replacement without a full station shutdown, and to programs that need the larger 1 Mbyte data memory for recipe or logging data.
