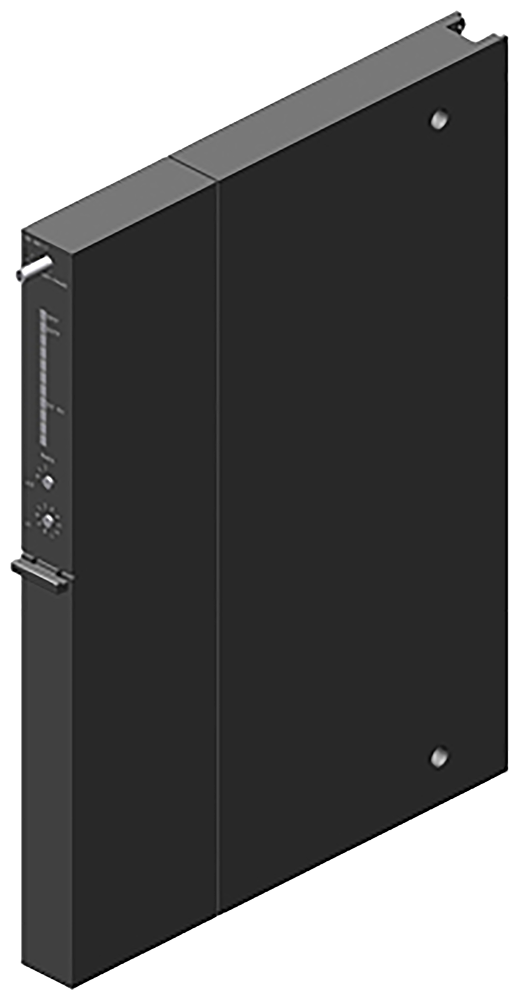

Siemens 6ES7461-1BA01-0AA0 SIMATIC S7-400 IM 461-1 Receiver Interface PLC Connection Module

% $-879.63
Siemens 6ES7461-1BA01-0AA0 IM 461-1 receiver interface module for SIMATIC S7-400
Siemens 6ES7461-1BA01-0AA0 IM 461-1 receiver interface module for SIMATIC S7-400

Siemens 6ES7461-1BA01-0AA0 SIMATIC S7-400 IM 461-1 Receiver Interface PLC Connection Module

Brand: Siemens
Reference No: 6ES7461-1BA01-0AA0
Catalog No: 6ES7461-1BA01-0AA0
Series: SIMATIC S7-400
Tariff Code (HS): 85176200
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$879.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7461-1BA01-0AA0 is a SIMATIC S7-400 IM 461-1 receiver interface module that pairs with an IM 460-1 send module for central rack coupling, over a cable up to 1.5 m long. It transfers the power-supply bus, so the expansion rack runs off the central rack's supply instead of needing its own, but it does not carry the C-bus.

Technical Specifications

Catalog No 6ES7461-1BA01-0AA0
SKU 6ES7461-1BA01-0AA0
Brand Siemens
Series SIMATIC S7-400
Product designation IM 461-1 receiver interface module
Function Central coupling, with PS transfer, without C-bus
Input current from backplane bus 5V DC, max 120 mA
Power loss, max 600 mW
Cable length between first and last interface module, max 1.5 m
Dimensions (W x H x D) 25 x 290 x 280 mm
Weight 610 g

Selection Notes

This receiver pairs only with an IM 460-1 send module, trading C-bus visibility for a shared power supply on the expansion rack. Choose it over the IM 461-0 receiver when eliminating a second supply matters more than cross-rack diagnostics, and note its 1.5 m maximum cable run is shorter than the C-bus variant's. Choose the IM 461-3 receiver instead when the rack-to-rack distance runs well beyond a few meters.

Technical Details

Short Description
SIMATIC S7-400 IM 461-1 receiver interface module for central coupling with PS transfer, 1.5 m.
Mounting Type
S7-400 rack, 25 mm slot width
Catalog No
6ES7461-1BA01-0AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7461-1BA01-0AA0
Tariff Code
85176200
