Siemens 6ES7461-0AA01-0AA0 SIMATIC S7-400 IM 461-0 Receiver Interface PLC Connection Module

% $-939.97

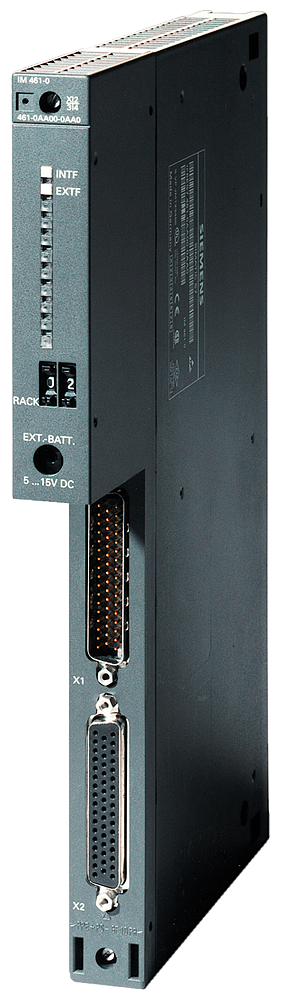

Siemens 6ES7461-0AA01-0AA0 IM 461-0 receiver interface module for SIMATIC S7-400
Siemens 6ES7461-0AA01-0AA0 IM 461-0 receiver interface module for SIMATIC S7-400

Siemens 6ES7461-0AA01-0AA0 SIMATIC S7-400 IM 461-0 Receiver Interface PLC Connection Module

Brand: Siemens
Reference No: 6ES7461-0AA01-0AA0
Catalog No: 6ES7461-0AA01-0AA0
Series: SIMATIC S7-400
Tariff Code (HS): 85176200
Communication: C-bus
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$939.97

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7461-0AA01-0AA0 is a SIMATIC S7-400 IM 461-0 receiver interface module that pairs with an IM 460-0 send module to complete a central rack coupling, over a cable up to 5 m long. It carries the C-bus, so the expansion rack gets full cross-rack configuration and diagnostics, but needs its own power supply since PS is not transferred.

Technical Specifications

Catalog No 6ES7461-0AA01-0AA0
SKU 6ES7461-0AA01-0AA0
Brand Siemens
Series SIMATIC S7-400
Product designation IM 461-0 receiver interface module
Function Central coupling, without PS transfer, with C-bus
Input current from backplane bus 5V DC, max 290 mA
Power loss, max 1450 mW
Cable length between first and last interface module, max 5 m
Required termination plug 6ES7461-0AA0-7AA1
Dimensions (W x H x D) 25 x 290 x 280 mm
Weight 610 g

Selection Notes

This receiver only makes sense installed opposite an IM 460-0 send module: the pair shares the C-bus so the expansion rack keeps configuration and diagnostics visibility, at the cost of a separate power supply since the pair does not transfer PS. Choose the IM 461-1 receiver instead if the coupling should transfer power supply without carrying C-bus, or the IM 461-3 receiver when the rack-to-rack distance exceeds a few meters. It terminates with the 6ES7461-0AA0-7AA1 plug.

Technical Details

Short Description
SIMATIC S7-400 IM 461-0 receiver interface module for central coupling with C-bus, up to 5 m.
Mounting Type
S7-400 rack, 25 mm slot width
Catalog No
6ES7461-0AA01-0AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7461-0AA01-0AA0
Tariff Code
85176200
