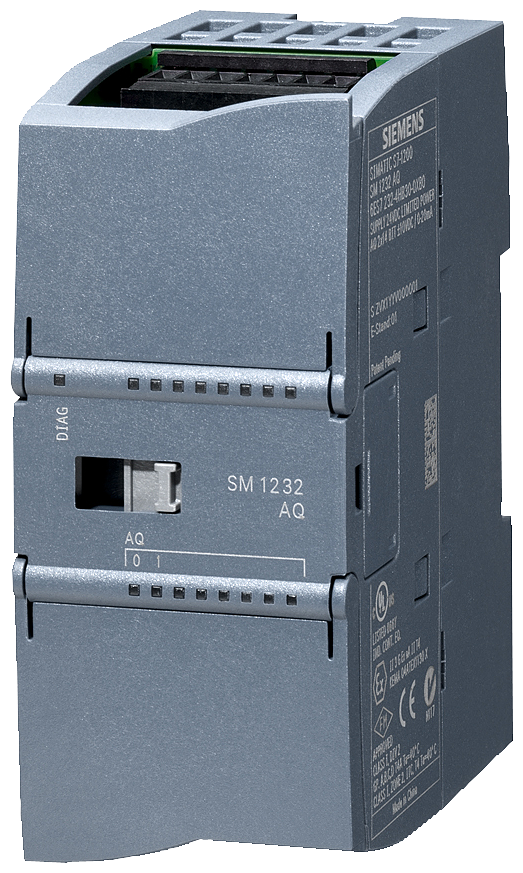

Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200 SM 1232 4 AO 14-Bit PLC I/O Module

The Siemens 6ES7232-4HD32-0XB0 is a SIMATIC S7-1200 SM 1232 module with 4 analog output channels, each switchable between a ±10 V DC voltage range at 14-bit resolution and a 0-20 mA current range at 13-bit resolution. It reports wire-break and short-circuit diagnostics per channel, dissipates 1.5 W typical, and draws 45 mA from its 24 V DC supply.

Technical Specifications

Certifications & Standards

• CE
• CSA
• UL
• cULus
• FM
• RCM
• KC
• Marine

Selection Notes

The SM 1232's 4 channels against the SB 1232 signal board's single channel make it the choice when a station needs multiple analog outputs -- 4 valve positioners or 4 drive setpoints -- from one rack-mounted module. Each channel independently reports wire-break (voltage mode) and short-circuit (current mode) diagnostics, which flags a disconnected actuator or a shorted loop without a separate wiring health check in the program. At 14-bit voltage / 13-bit current resolution it outresolves the SB 1232 signal board's 12-bit/11-bit pair, worth the larger rack footprint when output precision matters more than saving a slot.

Applications

Multi-loop process control -- valve positioners, VFD speed references, or damper actuators -- on S7-1200 machines needing 4 or more analog output channels from a single module.
