Siemens 6ES7194-4AA00-0AA0 SIMATIC ET 200pro CM IM DP ECOFAST CU 10A PLC Connection Module

% $-118.65
Siemens 6ES7194-4AA00-0AA0 ET 200pro CM ECOFAST Cu connection module - 10A
Siemens 6ES7194-4AA00-0AA0 ET 200pro CM ECOFAST Cu connection module - 10A

Siemens 6ES7194-4AA00-0AA0 SIMATIC ET 200pro CM IM DP ECOFAST CU 10A PLC Connection Module

Brand: Siemens
Reference No: 6ES7194-4AA00-0AA0
Catalog No: 6ES7194-4AA00-0AA0
Series: SIMATIC ET 200
Tariff Code (HS): 85389091
Rated Current: 10 A
Communication: PROFIBUS DP
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$118.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

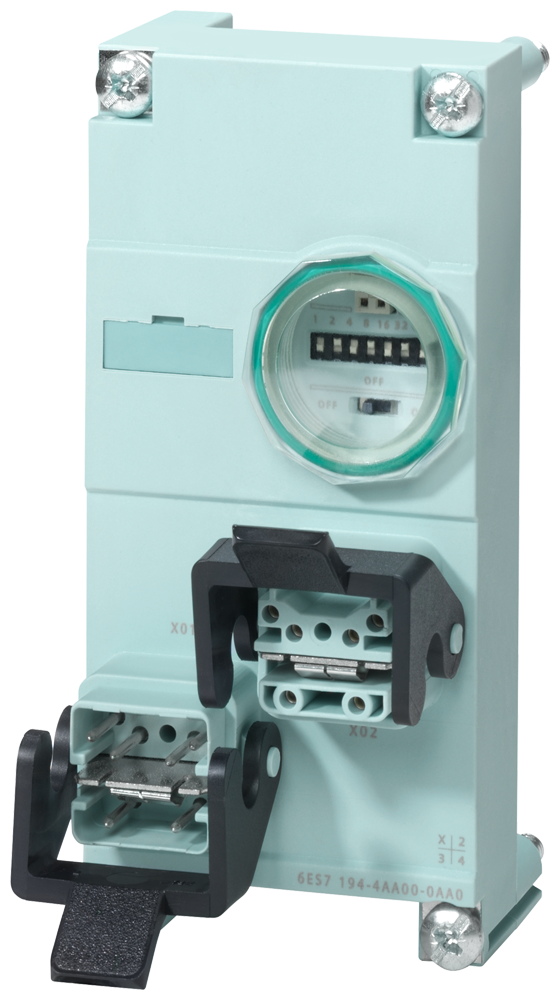

The Siemens 6ES7194-4AA00-0AA0 is an ECOFAST Cu connection module for the SIMATIC ET 200pro PROFIBUS DP interface module IM154-1/2 DP, providing two ECOFAST hybrid sockets for combined PROFIBUS signal and 24 V DC power distribution. It integrates an address setter and a bus terminating resistor, and accepts up to 10 A on both the supply (1L+) and load (2L+) rails.

Technical Specifications

SKU 6ES7194-4AA00-0AA0
Brand Siemens
Series SIMATIC ET 200pro
EAN 4025515072607
Function ECOFAST Cu terminal module: PROFIBUS DP and 24 V energy via ECOFAST hybrid cable, 2 sockets ECOFAST Cu
Compatible With ET 200pro; IM154-1/2 DP
Input Current, Supply 1L+ (max.) 10 A
Input Current, Load 2L+, No Load (max.) 10 A
Width 60 mm
Height 130 mm
Depth 60 mm
Net Weight 0.226 kg
Country of Origin DE

Selection Notes

Pick this ECOFAST Cu variant when the station's power distribution already runs ECOFAST hybrid cabling into the IM154-1/2 DP head module; it pairs PROFIBUS DP and 24 V power into a single 2-socket interface, reducing cable runs versus discrete M12 or 7/8-inch connectors. The 10 A rating on 1L+ and 2L+ sets the load budget available downstream before a booster or additional power feed is needed.

Technical Details

Short Description
Siemens 6ES7194-4AA00-0AA0 ECOFAST Cu connection module for ET 200pro PROFIBUS DP, 2 sockets, 10A max.
Rated Current (Ampere)
10 A
Catalog No
6ES7194-4AA00-0AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-4AA00-0AA0
Tariff Code
85389091
