Siemens 6ES7194-2LN10-1AB0 ET 200AL Power Cable M8 4-Pole 10m Angled IP65/67 Remote I/O Accessory

% $-36.82

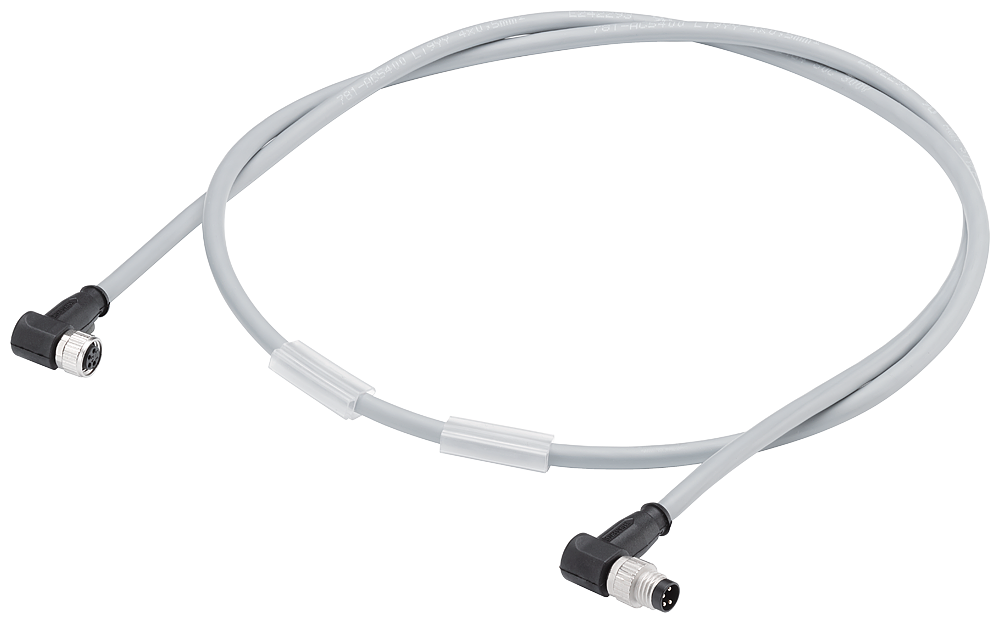

Siemens 6ES7194-2LN10-1AB0 ET 200AL M8 power cable angled 10m - IP65/67
Siemens 6ES7194-2LN10-1AB0 ET 200AL M8 power cable angled 10m - IP65/67

Siemens 6ES7194-2LN10-1AB0 ET 200AL Power Cable M8 4-Pole 10m Angled IP65/67 Remote I/O Accessory

Brand: Siemens
Reference No: 6ES7194-2LN10-1AB0
Catalog No: 6ES7194-2LN10-1AB0
Series: SIMATIC ET 200
Tariff Code (HS): 85444290
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$36.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7194-2LN10-1AB0 is a preassembled M8 power cable for the SIMATIC ET 200AL remote I/O system, supplying 24 V DC to the station. It carries four 0.50 mm² cores with a 90-degree angled outlet at both connector ends and is rated IP65/67 for washdown and outdoor panel environments. At 10 m length, it links the power source to the ET 200AL module in tight-clearance installations.

Technical Specifications

SKU 6ES7194-2LN10-1AB0
Brand Siemens
Series SIMATIC ET 200AL
EAN 4047623403050
Product Description Flexible 4-core power cable, preassembled at both ends with M8 male and M8 female connectors, angled
Cable Length 10 m
Number of Cores 4
Cable Designation 4 Li9Y 0.50 mm² Y
Outer Diameter, Cable Sheath 5.2 mm
IP Rating IP65/67
Outgoing Feeder Type 90-degree cable outlet
Bending Radius, Single Bend (min.) 26 mm
Bending Radius, Multiple Bends (min.) 52 mm
Number of Bending Cycles 2,500,000
Sheath Material PVC
Sheath Color Gray
Core Insulation Material PP
Ambient Temperature, Assembly -30 to 80 °C
Storage/Transport Temperature -40 to 80 °C
Weight per Length 44 kg/km
Net Weight 0.446 kg
Country of Origin SK

Selection Notes

Choose this angled, double-ended M8 cable when connector clearance is restricted at both the power source and the ET 200AL module; the 90-degree outlet reduces the bend radius needed behind the connector compared with the straight version. Use the straight 180-degree variant instead when cable routing runs parallel to the connector axis, or the single-sided version when only one end needs a factory M8 connector.

Technical Details

Short Description
Siemens 6ES7194-2LN10-1AB0 M8 power cable for ET 200AL, 4-pole, 10m, IP65/67, both ends angled 90-degree.
Protection Type
IP65/67
Catalog No
6ES7194-2LN10-1AB0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-2LN10-1AB0
Tariff Code
85444290
