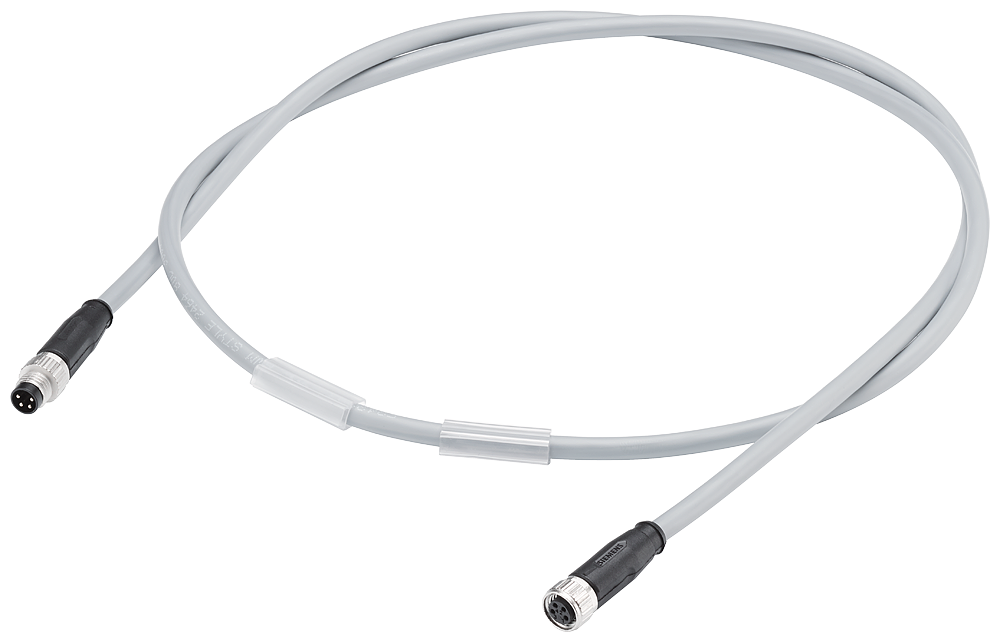

Siemens 6ES7194-2LN10-1AA0 ET 200AL Power Cable M8 4-Pole 10m IP65/67 Remote I/O Accessory

% $-33.75
Siemens 6ES7194-2LN10-1AA0 ET 200AL M8 power cable 10m - IP65/67
Siemens 6ES7194-2LN10-1AA0 ET 200AL M8 power cable 10m - IP65/67

Siemens 6ES7194-2LN10-1AA0 ET 200AL Power Cable M8 4-Pole 10m IP65/67 Remote I/O Accessory

Brand: Siemens
Reference No: 6ES7194-2LN10-1AA0
Catalog No: 6ES7194-2LN10-1AA0
Series: SIMATIC ET 200
Tariff Code (HS): 85444290
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$33.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7194-2LN10-1AA0 is a preassembled M8 power cable for the SIMATIC ET 200AL remote I/O system, supplying 24 V DC to the station. It carries four 0.50 mm² cores in a straight 180-degree outlet configuration and is rated IP65/67 for washdown and outdoor panel environments. At 10 m length, it links the power source to the ET 200AL module without field termination.

Technical Specifications

SKU 6ES7194-2LN10-1AA0
Brand Siemens
Series SIMATIC ET 200AL
EAN 4047623403005
Product Description Flexible 4-core power cable, preassembled at both ends with M8 male and M8 female connectors
Cable Length 10 m
Number of Cores 4
Cable Designation 4 Li9Y 0.50 mm² Y
Outer Diameter, Cable Sheath 5.2 mm
IP Rating IP65/67
Outgoing Feeder Type 180-degree cable outlet
Bending Radius, Single Bend (min.) 26 mm
Bending Radius, Multiple Bends (min.) 52 mm
Number of Bending Cycles 2,500,000
Sheath Material PVC
Sheath Color Gray
Core Insulation Material PP
Ambient Temperature, Assembly -30 to 80 °C
Storage/Transport Temperature -40 to 80 °C
Weight per Length 44 kg/km
Net Weight 0.436 kg
Country of Origin SK

Selection Notes

Choose this straight, double-ended M8 cable when both connector ends need a 180-degree outlet, for example running from a fixed power distribution point to the ET 200AL module along a flat cable tray. Compare it against the angled 90-degree version when clearance around the connector is tight, and against the single-sided version when only one end terminates at a factory M8 connector.

Technical Details

Short Description
Siemens 6ES7194-2LN10-1AA0 M8 power cable for ET 200AL, 4-pole, 10m, IP65/67, both ends preassembled straight.
Protection Type
IP65/67
Catalog No
6ES7194-2LN10-1AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-2LN10-1AA0
Tariff Code
85444290
