Siemens 6ES7194-2LH03-1AA0 ET 200AL M8 Power Cable 4-Pole 0.3m 24V DC Remote I/O Accessory

% $-20.46
Siemens 6ES7194-2LH03-1AA0 M8 Power Cable Remote I/O Accessory - 0.3m, IP65/67
Siemens 6ES7194-2LH03-1AA0 M8 Power Cable Remote I/O Accessory - 0.3m, IP65/67

Siemens 6ES7194-2LH03-1AA0 ET 200AL M8 Power Cable 4-Pole 0.3m 24V DC Remote I/O Accessory

Brand: Siemens
Reference No: 6ES7194-2LH03-1AA0
Catalog No: 6ES7194-2LH03-1AA0
Series: SIMATIC ET 200
Tariff Code (HS): 85444290
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$20.46

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

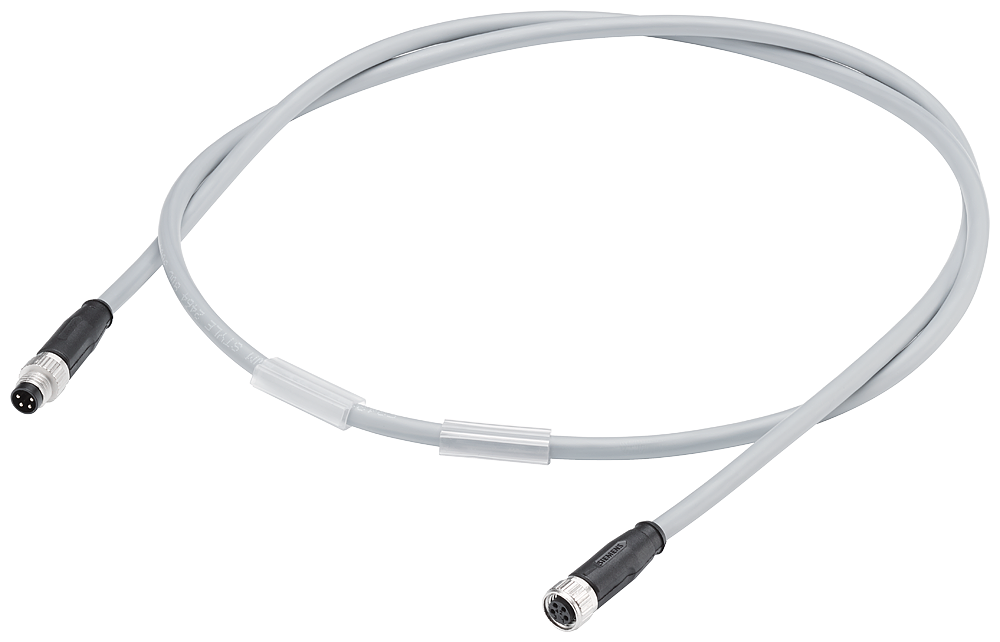

The Siemens 6ES7194-2LH03-1AA0 is a 0.3 m power cable preassembled with an M8 connector on one end and an M8 socket on the other for daisy-chaining the 24 V DC supply between SIMATIC ET 200AL stations. The 4-core cable is rated IP65/67 and withstands 2,500,000 bending cycles at a 52 mm radius.

Technical Specifications

SKU 6ES7194-2LH03-1AA0
Brand Siemens
Series SIMATIC ET 200AL
EAN 4047623402961
Product type designation Power cable
Product description Flexible cable (4-core), preassembled at each end with a 4-pin M8 male/female connector
Suitability for use For connection to ET 200AL for 24 V DC power supply
IP degree of protection IP65/67
Ambient temperature during assembly -30 to 80 degC
Ambient temperature during storage/transportation -40 to 80 degC
Cable designation 4 Li9Y 0.50 mm2 Y
Cable length 0.3 m
Number of electrical cores 4
Outer diameter of inner conductor 0.8 mm
Outer diameter of core insulation 1.46 mm
Outer diameter of cable sheath 5.2 mm
Number of bending cycles 2,500,000 (52 mm radius, 3 m/s, 10 m/s2)
Permissible bending radius, single bend, min. 26 mm
Permissible bending radius, multiple bends, min. 52 mm
Bending radius for continuous bending 52 mm
Color of cable sheath Gray
Color of core insulation White / brown / blue / black
Weight per length 44 kg/km
Weight, approx. (assembly) 29 g
Outgoing feeder type 180 degree cable outlet
Material of cable sheath PVC
Material of core insulation PP
Silicone-free Yes

Selection Notes

The male/female M8 ends daisy-chain the 24 V DC supply between ET 200AL power connectors; the 0.3 m length suits stations spaced slightly further apart than the shorter cable in the same family. The 2,500,000-cycle bend rating at a 52 mm radius supports drag-chain or frequently flexed routing.

Technical Details

Short Description
Siemens M8 power cable, 4-pole, 0.3 m, male/female M8 ends, IP65/67, 24V DC supply for ET 200AL.
Protection Type
IP65/67
Catalog No
6ES7194-2LH03-1AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-2LH03-1AA0
Tariff Code
85444290
