Siemens 6ES7194-2LH03-0AA0 SIMATIC ET-Connection M8 Bus Cable 0.3m Remote I/O Accessory

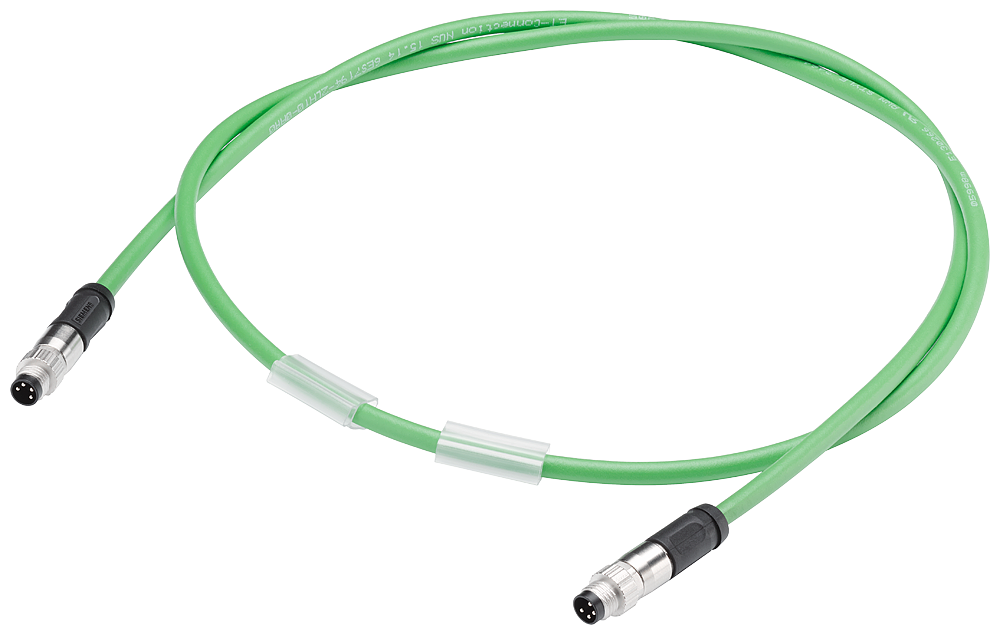

The Siemens 6ES7194-2LH03-0AA0 is a 0.3 m ET-Connection bus cable, preassembled at both ends with 2x M8 4-pin shielded connectors, rated IP65/67 for direct field wiring between SIMATIC ET 200AL nodes. It withstands 1,000,000 bending cycles at a 100 mm radius and operates from -30 to 80 degrees C during installation.

Technical Specifications

Selection Notes

At 0.3 m, this cable suits short jumper runs between adjacent SIMATIC ET 200AL nodes rather than long field runs; choose a longer preassembled length from the same ET-Connection line where nodes are spaced further apart. The IP65/67-rated M8 connectors and 1,000,000-cycle bend rating support installation on moving machine sections without a cable carrier upgrade.

Applications

Node-to-node PROFINET wiring for SIMATIC ET 200AL distributed I/O in IP65/67 field installations without a control cabinet - machine tool, conveyor, and packaging line wiring exposed to washdown or movement.
