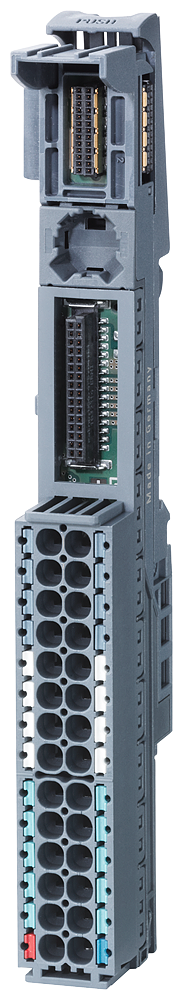

Siemens 6ES7193-6BP40-0BA1 SIMATIC ET 200SP BaseUnit BU15-P16+A0+12B/T Remote I/O Accessory

% $-34.78
Siemens 6ES7193-6BP40-0BA1 SIMATIC ET 200SP BaseUnit BU15 type A1
Siemens 6ES7193-6BP40-0BA1 SIMATIC ET 200SP BaseUnit BU15 type A1

Siemens 6ES7193-6BP40-0BA1 SIMATIC ET 200SP BaseUnit BU15-P16+A0+12B/T Remote I/O Accessory

Brand: Siemens
Reference No: 6ES7193-6BP40-0BA1
Catalog No: 6ES7193-6BP40-0BA1
Series: SIMATIC ET 200SP
Tariff Code (HS): 85366990
Rated Current: 10 A (bus) / 2 A (per terminal)
Rated Voltage: 24 V
Stock: 19
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$34.78

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens SIMATIC ET 200SP BaseUnit BU15-P16+A0+12B/T 6ES7193-6BP40-0BA1 is a type A1 base unit with 16 push-in process terminals, 2x5 add-on terminals bridged to the left, and integrated temperature acquisition. It carries the P1/P2 potential bus forward from the base unit to its left and is rated 10 A on the bus, 2 A per process terminal.

Technical Specifications

SKU 6ES7193-6BP40-0BA1
Brand Siemens
Series SIMATIC ET 200SP
Product type designation BU type A1
HW functional status FS10 and higher
Rated supply voltage 24 V DC
External protection required 24 V DC / 10 A miniature circuit breaker, type B or C
Current carrying capacity, P1/P2 bus, max. 10 A
Current carrying capacity, process terminals, max. 2 A
Additional terminals Yes, 2x5 add-on terminals
Temperature sensor Yes
Potential group continued from left Yes
Slots 1, type A1
Isolation test voltage 707 V DC (type test)
Terminal type Push-in terminal
Conductor cross-section 0.14 ... 2.5 mm2 (AWG 26-14)
Number of process terminals 16
Ambient temperature, horizontal install -30 ... 60 C
Ambient temperature, vertical install -30 ... 50 C
Installation altitude, max. 5,000 m
Dimensions (W x H x D) 15 x 141 x 35 mm
Net weight 50 g

Selection Notes

Type A1 fixes which I/O modules this BaseUnit accepts; match it to an A1-type I/O module rather than the wider A0 BaseUnit family. The built-in temperature sensor and the 2x5 add-on terminals distinguish this BU15 variant from a plain BU15 without additional terminals, so use it where the module needs local temperature acquisition or extra terminal points beyond the 16 process terminals.

Technical Details

Short Description
Siemens SIMATIC ET 200SP BaseUnit BU15-P16+A0+12B/T, type A1, 16 push-in terminals, temperature sensing.
Rated Current (Ampere)
10 A (bus) / 2 A (per terminal)
Rated Voltage (VAC)
24 V
Mounting Type
ET 200SP mounting rail
Catalog No
6ES7193-6BP40-0BA1
Delivery Date (Days)
1-2 days
Model Number
6ES7193-6BP40-0BA1
Tariff Code
85366990
