Siemens 6ES7193-6AS00-0AA0 ET 200SP BusAdapter BA-Send 1xFC Remote I/O Accessory

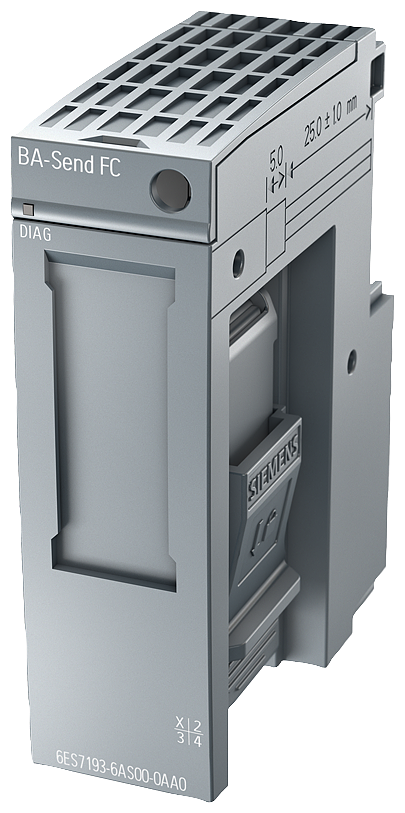

The Siemens 6ES7193-6AS00-0AA0 is a SIMATIC ET 200SP BusAdapter (BA-Send 1xFC) that starts the sending side of an ET-Connection link, extending a station over Cu FastConnect cable via a single FastConnect termination. It mounts on the interface module's BusAdapter slot and pairs with a BaseUnit BU-Send to begin the extended segment.

Technical Specifications

Selection Notes

BA-Send starts an ET-Connection segment, the cabled link that lets an ET 200SP station's I/O modules be physically split and mounted apart from the interface module, useful when panel space or field layout does not allow all modules on one contiguous DIN rail run. Each hop on the Cu FastConnect cable, including the first one from BA-Send, is limited to 15 m from IM firmware V3.3 onward, so the total split distance depends on how many bus nodes are chained. It requires a matching BaseUnit BU-Send on the same slot to physically start the segment.

Applications

Splitting an ET 200SP station across separate mounting locations, for example the interface module and first I/O group in one cabinet with an additional I/O group up to 15 m away, via the ET-Connection cabled extension.
