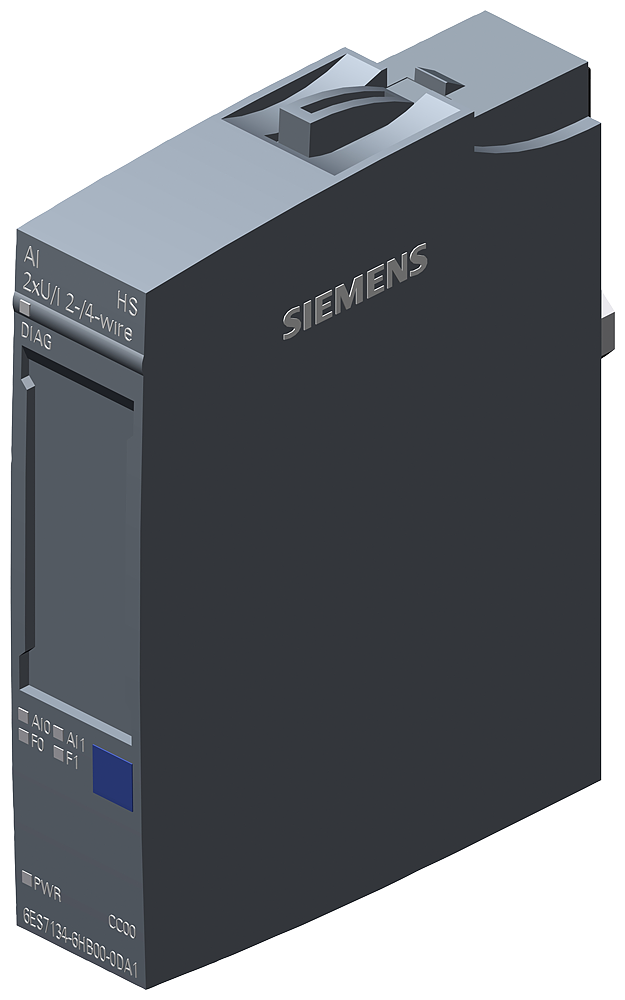

Siemens 6ES7134-6HB00-0DA1 SIMATIC ET 200SP AI 2xU/I HS 16-Bit Analog Input Module

The Siemens SIMATIC ET 200SP AI 2xU/I 2-/4-wire HS (6ES7134-6HB00-0DA1) is a 2-channel high-speed analog input module with 16-bit resolution and a 10 microsecond per-channel conversion time. It supports isochronous mode at a 125 microsecond bus cycle, mounts on BaseUnit types A0 or A1, and draws 39 mA from the 24 V DC backplane supply with 0.95 W power loss.

Technical Specifications

Selection Notes

The HS (high-speed) designation gives this module a 10 microsecond per-channel conversion time and 125 microsecond isochronous bus cycle, well ahead of standard ET 200SP analog input modules used for general process monitoring - pick it for closed-loop or fast-changing signals where a slower module's cycle time would lag the process. Its 15 mm width and BaseUnit A0/A1 compatibility let it sit in the same station as standard-speed modules without a special mounting rail.

Applications

Used for fast analog acquisition in ET 200SP stations - closed-loop control loops, high-speed sensor sampling, and applications where isochronous PROFINET timing matters more than raw channel count.
