Siemens 6ES7134-6FB00-0BA1 SIMATIC ET 200SP AI 2xU Standard 16-Bit Analog Input Module

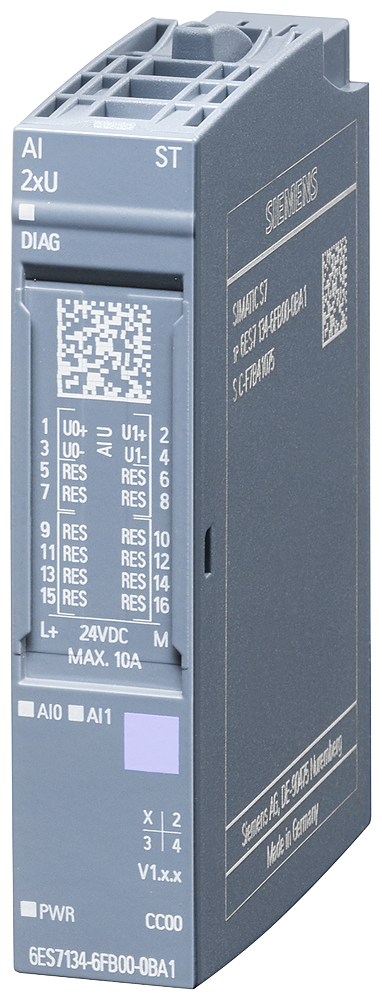

The Siemens 6ES7134-6FB00-0BA1 SIMATIC ET 200SP AI 2xU Standard analog input module provides 2 voltage inputs at up to 16-bit resolution including sign, covering ranges from 0-10 V to plus/minus 10 V. It runs on 24 V DC, draws 33.5 mA typical, and mounts on BU type A0 or A1 base units with automatic module coding.

Technical Specifications

Selection Notes

The AI 2xU ST covers two voltage channels only (0-10 V, 1-5 V, plus/minus 5 V, plus/minus 10 V) — for 4-20 mA current-loop instruments, a combined current/voltage AI module is the correct part instead. The 500 microsecond minimum cycle time and 16-bit resolution including sign fit standard process measurement rather than the higher-accuracy HF-class analog modules used for calibration-grade metering. It mounts only on BU type A0 or A1 base units, so confirm the base unit type already installed on the ET 200SP station before ordering the module on its own.

Applications

Fits ET 200SP distributed I/O stations reading 0-10 V or plus/minus 10 V transducer signals for tank level, pressure, or position feedback back to the controller over PROFINET or PROFIBUS via the station's interface module.
