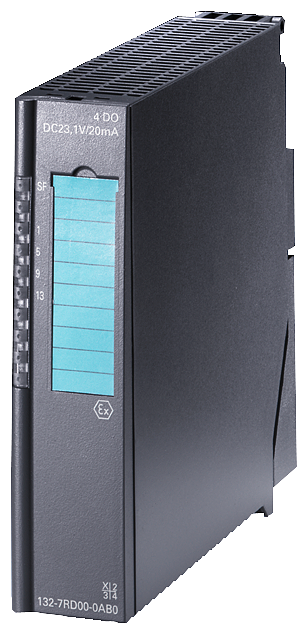

Siemens 6ES7132-7RD01-0AB0 SIMATIC ET 200iSP 4DO 23.1V DC/20mA Ex ib Remote I/O Module

The Siemens 6ES7132-7RD01-0AB0 is a SIMATIC ET200iSP intrinsically safe electronic module with 4 digital outputs rated 23.1 V DC/20 mA, plus an integrated intrinsically-safe input for H shutdown. It carries ATEX and IECEx Ex ib [ia Ga] IIC T4 Gb approval for Zone 1 gas and Zone 21 dust areas, mounts on a rail or front panel, and provides screw/spring-type terminal connections with IP30 protection.

Technical Specifications

Certifications & Standards

• GL
• ABS
• BV
• DNV

Selection Notes

The rated output is only 20 mA, so this module is sized for low-power actuators such as solenoid pilots or intrinsically-safe indicator circuits in a hazardous area, not general-purpose switching. Parallel switching of two outputs for uprating is explicitly not possible for Ex reasons, which rules out doubling current capacity the way a non-Ex module might allow. The integrated intrinsically-safe H-shutdown input is a dedicated safety-shutdown channel separate from the 4 standard DO channels, and its own Ex parameters (Ui 28 V, Pi 1.2 W, Ci 3 nF) must be checked against the connected field circuit during loop calculation.

Applications

Built for digital output signaling inside ATEX/IECEx Zone 1 gas or Zone 21 dust areas and IECEx Zone 1 marine/offshore installations, where field wiring must stay intrinsically safe, such as low-power solenoid or indicator control on process skids, tank farms, and hazardous-area production lines.
