Siemens 6ES7132-6FD00-0CU0 SIMATIC ET 200SP DQ 4x24-230VAC/2A HF Remote I/O Module

% $-291.65

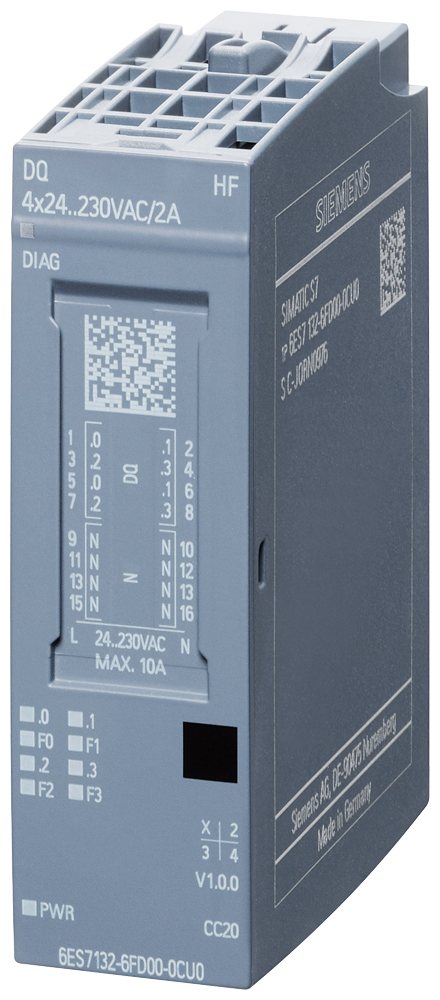

Siemens 6ES7132-6FD00-0CU0 SIMATIC ET 200SP DQ module - 4x24-230VAC/2A
Siemens 6ES7132-6FD00-0CU0 SIMATIC ET 200SP DQ module - 4x24-230VAC/2A

Siemens 6ES7132-6FD00-0CU0 SIMATIC ET 200SP DQ 4x24-230VAC/2A HF Remote I/O Module

Brand: Siemens
Reference No: 6ES7132-6FD00-0CU0
Catalog No: 6ES7132-6FD00-0CU0
Series: SIMATIC ET 200SP
Tariff Code (HS): 85389091
Rated Current: 2
Rated Voltage: 24-230
Communication: PROFINET, PROFIBUS (via GSD)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$291.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7132-6FD00-0CU0 is a SIMATIC ET 200SP digital output module with 4 triac channels rated 24-230 V AC at 2 A each, supporting standard DQ switching and phase-angle power control from 8.5 to 100% of the phase angle. It mounts on BU type U0 and covers half-wave, full-wave, and energy-saving output modes for resistive, inductive, and lamp loads.

Technical Specifications

Catalog No 6ES7132-6FD00-0CU0
SKU 6ES7132-6FD00-0CU0
Brand Siemens
Series SIMATIC ET 200SP
Product type designation DQ 4x24-230 V AC/2 A HF
Digital outputs 4, triac
Rated output voltage (AC) 24-230 V AC
Rated output current per channel 2 A
Max output current per channel 4 A (see derating in manual)
Max current per module 8 A
Supply voltage (AC) 230 V, 47-63 Hz
Supply voltage permissible range 20.4-264 V AC
Operating modes DQ, DQ with energy-saving function, phase control, half-wave, full-wave
Phase control range 8.5-100% of the phase angle
Switching frequency, resistive load, max. 10 Hz
Switching frequency, lamp load, max. 1 Hz
Short-circuit protection No, external fusing necessary
Open-circuit detection Yes, channel by channel
Power loss, typ. 9 W
BaseUnit BU type U0
Address space, outputs 8 byte
Diagnostics Diagnostic alarm, group error, supply voltage monitoring
Ambient temperature, horizontal -30 to 60 degC
Ambient temperature, vertical -30 to 50 degC
Dimensions (W x H x D) 20 x 73 x 58 mm
Weight, approx. 50 g

Selection Notes

This module runs in two distinct modes on the same BU type U0 base: plain DQ switching for on/off loads, or phase-angle power control (8.5-100%) for resistive heating and lamp loads that need graded output instead of a hard switch. Because there is no internal short-circuit protection, size the external miniature fuse to the module's quick-response tripping requirement before wiring the load. Parallel switching of two outputs is supported when a load needs redundant control from two channels.

Technical Details

Short Description
SIMATIC ET 200SP DQ module, 4x 24-230VAC/2A, DQ and phase control modes, BU type U0.
Rated Current (Ampere)
2
Rated Voltage (VAC)
24-230
Mounting Type
BU type U0 (ET 200SP BaseUnit)
Catalog No
6ES7132-6FD00-0CU0
Delivery Date (Days)
10-15 days
Model Number
6ES7132-6FD00-0CU0
Tariff Code
85389091
