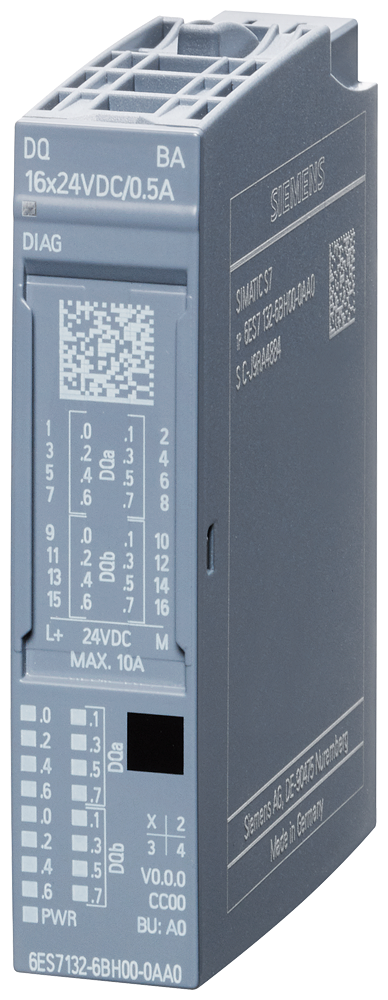

Siemens 6ES7132-6BH00-0AA0 SIMATIC ET 200SP DQ 16x24VDC/0.5A BA Remote I/O Module

The Siemens 6ES7132-6BH00-0AA0 is a SIMATIC ET 200SP digital output module with 16 channels rated 24 VDC at 0.5 A per channel, delivering up to 8 A per module. It mounts on BaseUnit type A0 and communicates diagnostic and channel-status information over the backplane bus for either PROFINET or PROFIBUS I/O stations.

Technical Specifications

Selection Notes

The 0.5 A per-channel rating on this module fits small relay coils, indicator lamps, and solenoid valves rather than heavier contactor coils; the 8 A per-module limit means all 16 channels cannot run at full rated current simultaneously across the same module. Parallel switching of two outputs is supported for redundant control of a single load, useful where a failed output must not stop the process. Group-error and short-circuit diagnostics report back through the backplane bus, so a station built from several of these modules still gives channel-level fault isolation without extra wiring. It requires BaseUnit type A0 (1-wire); multi-wire potential distribution needs an additional potential distributor module on the same BaseUnit type.

Applications

Used in SIMATIC ET 200SP remote I/O stations for switching indicator lamps, small relays, and 24 VDC solenoid valves in machine control panels and distributed field enclosures where PROFINET or PROFIBUS connects the station back to the controller.
