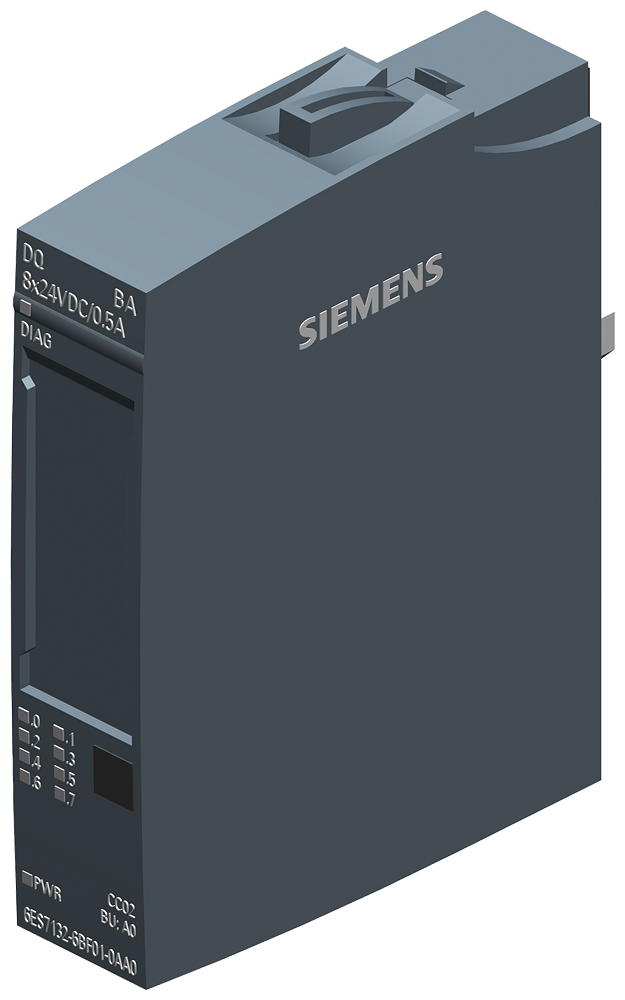

Siemens 6ES7132-6BF01-0AA0 SIMATIC ET 200SP DQ 8x24V DC/0.5A Digital Output Module

The Siemens 6ES7132-6BF01-0AA0 is a SIMATIC ET 200SP digital output module providing 8 PNP source outputs rated 24 V DC/0.5 A each, mounted on a BU type A0 BaseUnit. Each channel has per-channel electronic short-circuit protection with a typical 1 A response threshold, and the module reports diagnostics for supply voltage monitoring and group errors.

Technical Specifications

Selection Notes

The 0.5 A per-channel rating with a 4 A per-module ceiling covers relay coils, indicator lamps, and small solenoids directly, but loads switching above 1 A trip the electronic short-circuit protection and need an interposing relay or a contactor-driving module instead. The PL d/SIL 2 rating qualifies this module for safety-related tripping of standard outputs per the manufacturer's FAQ guidance, which matters when the output feeds an E-stop or guard interlock chain rather than a non-safety indicator circuit. It mounts only on a BU type A0 BaseUnit, so confirm that BaseUnit type is already provisioned in the station before ordering.

Applications

Distributed digital output for ET 200SP stations controlling 24 V DC loads such as indicator lamps, small relays, and solenoid valves in machine and process control panels.
