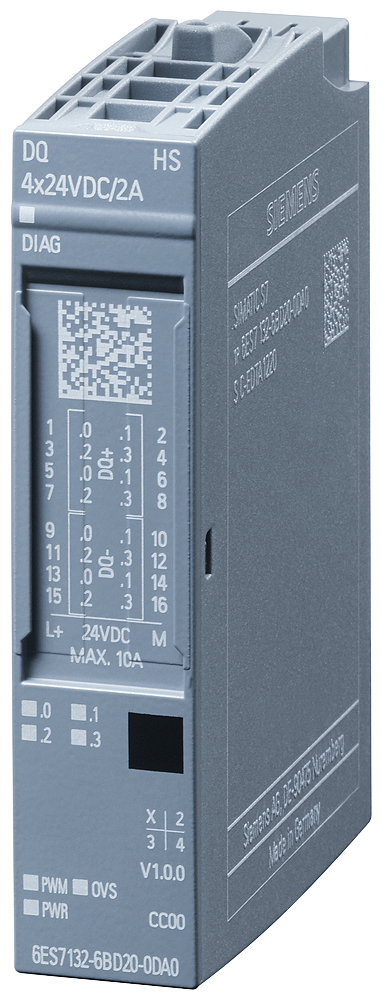

Siemens 6ES7132-6BD20-0DA0 SIMATIC ET 200SP DQ 4x24V DC/2A High Speed Remote I/O Module

The Siemens 6ES7132-6BD20-0DA0 is a SIMATIC ET 200SP digital output module with 4 channels rated 24 V DC/2 A each, designed for high-speed switching. Beyond standard DQ mode it supports PWM output, oversampling down to 100 microsecond resolution, and cam control via module-to-module communication, and requires BU type A0 with a 24 V DC supply.

Technical Specifications

Selection Notes

This is the High Speed variant of the ET 200SP DQ 4x24V DC/2A module, distinguished from the standard-speed version by its PWM, oversampling, and cam-control operating modes, and by the 5 kHz max switching frequency on resistive loads. Pick it over the standard DQ-only module when the application needs pulsed or profiled output, such as PWM-driven actuators or cam-track switching synchronized to an axis position, not just simple on/off control. It requires BU type A0, and 3- or 4-wire connections need the AUX terminals or a potential distributor module in addition to the base unit.

Applications

Suited to high-speed digital output tasks on an ET 200SP station such as PWM control of proportional valves or heaters, cam-based switching synchronized to linear or rotary axis position via module-to-module communication, and oversampled output sequences that standard-speed DQ modules cannot generate.
