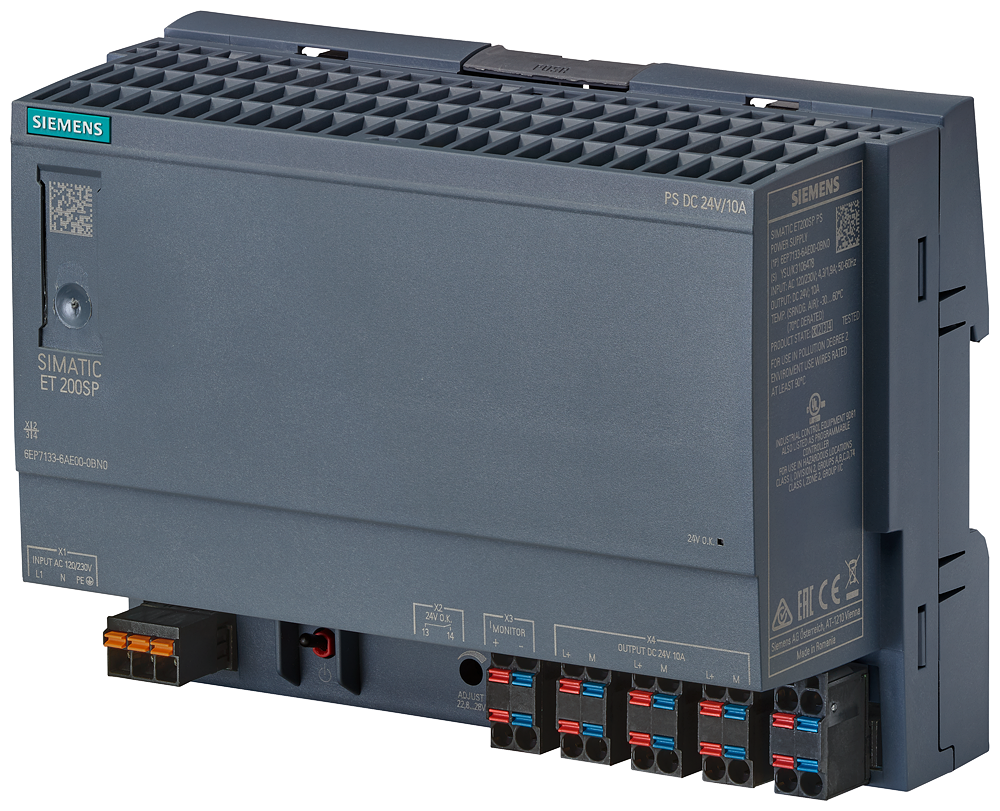

Siemens 6EP7133-6AE00-0BN0 SIMATIC ET 200SP PS 24 V/10 A Power Supply

The Siemens SIMATIC ET 200SP PS 6EP7133-6AE00-0BN0 is a stabilized power supply for the ET 200SP distributed I/O station, converting a 120/230 V AC auto-ranging input into 24 V DC at 10 A (240 W) with 90% typical efficiency. It carries ULhazloc and UKEX hazardous-location approval, operates from -30 to +70 degrees C with natural convection, and connects via removable push-in terminals.

Technical Specifications

Certifications & Standards

• CE
• EAC
• CB
• ULhazloc
• UKEX
• CCC
• Shipbuilding
• BV
• DNV
• EPD

Selection Notes

The 160 x 117 x 74 mm footprint and removable push-in terminals are sized to mount directly beside the ET 200SP BusAdapter and CPU rather than as a standalone DIN-rail supply — select it specifically for ET 200SP stations rather than a general-purpose SITOP unit whenever the station's mechanical and electrical interface expects this form factor. Its 10 A rated / 12 A short-term output current combined with ULhazloc and UKEX hazardous-location approval makes it suitable as the primary supply for ET 200SP I/O racks located in or near classified hazardous areas, where a standard-rated SITOP supply would not qualify. The redundancy, buffer, selectivity, and DC UPS modules listed as accessories extend this base unit for stations that need supply redundancy or ride-through.

Applications

Primary 24 V DC power for SIMATIC ET 200SP distributed I/O stations, hazardous-area automation panels, and machine builds standardized on the ET 200SP I/O platform.
