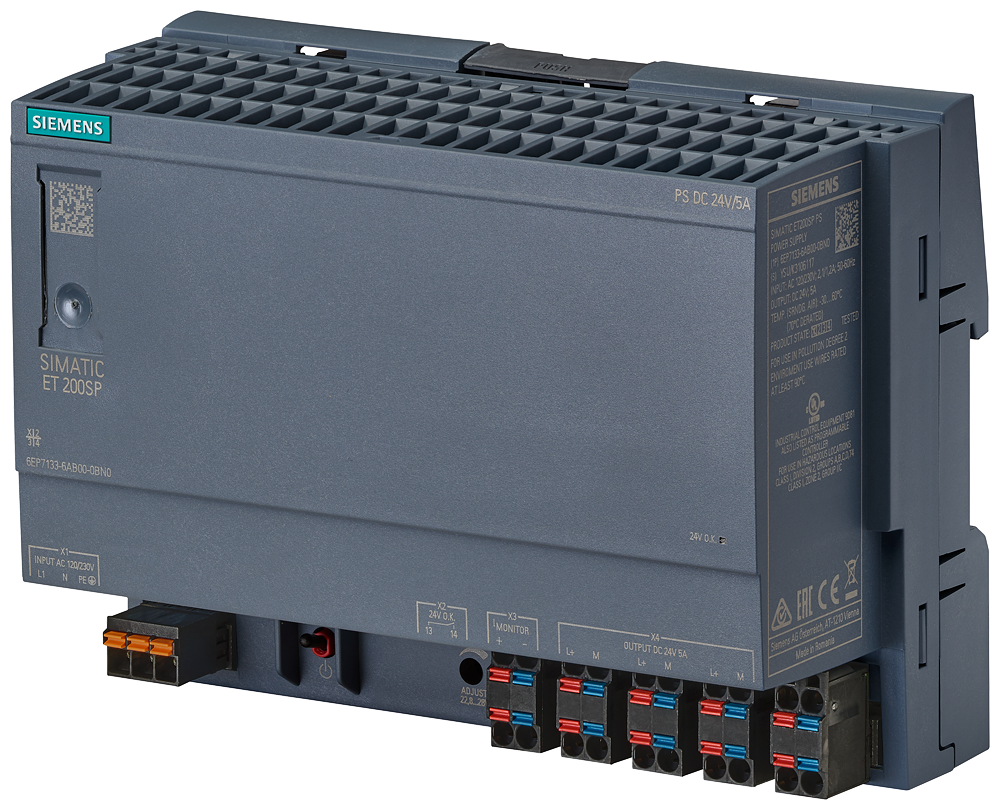

Siemens 6EP7133-6AB00-0BN0 SIMATIC ET 200SP PS 24V/5A DIN Rail Power Supply

The Siemens 6EP7133-6AB00-0BN0 is a stabilized power supply designed for the SIMATIC ET 200SP distributed I/O station, converting a 1-phase 120V/230V AC input (automatic range selection) to 24V DC at 5A rated output (6A rated range) with 88% efficiency. It mounts on the same DIN rail as the ET 200SP modules it feeds.

Technical Specifications

Certifications & Standards

• CE
• EAC
• CB
• ULhazloc
• UKEX
• CCC Ex
• Shipbuilding
• BV
• DNV
• EPD

Selection Notes

Automatic range selection between 120V and 230V removes the need for a manual voltage switch, which matters on machines built for more than one line voltage region. The 5A rated output steps up to a 6A rated range below 60C, so headroom above 5A depends on cabinet temperature staying under that threshold. It is designed to work with optional redundancy, buffer, and selectivity modules or a DC UPS from the same ET 200SP power-supply accessory line, letting power quality be upgraded without replacing the base unit. The 7 ... 7.5A short-circuit response current is the figure to check against downstream circuit breaker coordination.

Applications

Local 24V DC power for a SIMATIC ET 200SP distributed I/O station, mounted on the same DIN rail segment as the I/O modules, interface module, and BaseUnits it supplies.
