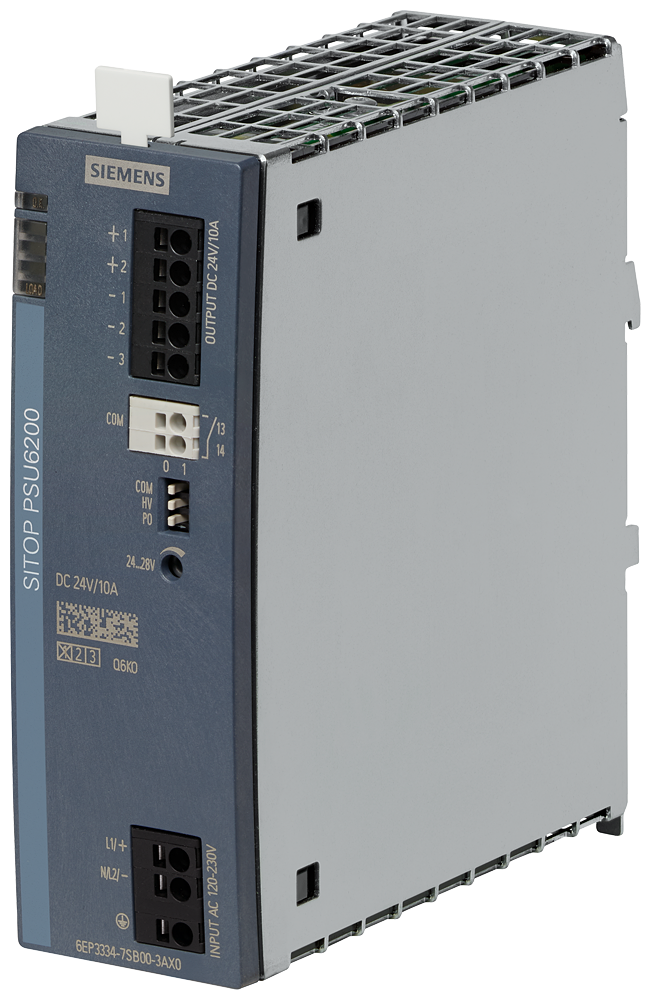

Siemens 6EP3334-7SB00-3AX0 SITOP PSU6200 24V/10A Power Supply with Diagnostics

The Siemens SITOP PSU6200 (6EP3334-7SB00-3AX0) is a single-phase AC/DC stabilized power supply that outputs a regulated 24 V DC at 10 A (240 W) from a 120 - 240 V AC or 110 - 240 V DC wide-range input, with a diagnostic interface for DC-OK signaling.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• EAC
• RCM
• CB
• ABS
• DNV
• EPD

Selection Notes

At 10 A / 240 W this PSU6200 sits above the 3 A/72 W PSU4200 in the same series and covers larger 24 V DC loads such as multiple I/O racks or actuators from one supply. The diagnostic interface's floating NO contact reports DC-OK status to a separate monitoring input, useful when the supply feeds equipment outside line of sight. Marine classification (ABS, DNV) makes it a fit for shipboard control panels where a standard PSU4200 unit has no such approval.

Applications

Powers larger 24 V DC loads in control cabinets, including multiple SIMATIC racks, sensor/actuator buses, and marine or offshore automation panels needing ABS/DNV-approved supplies.
