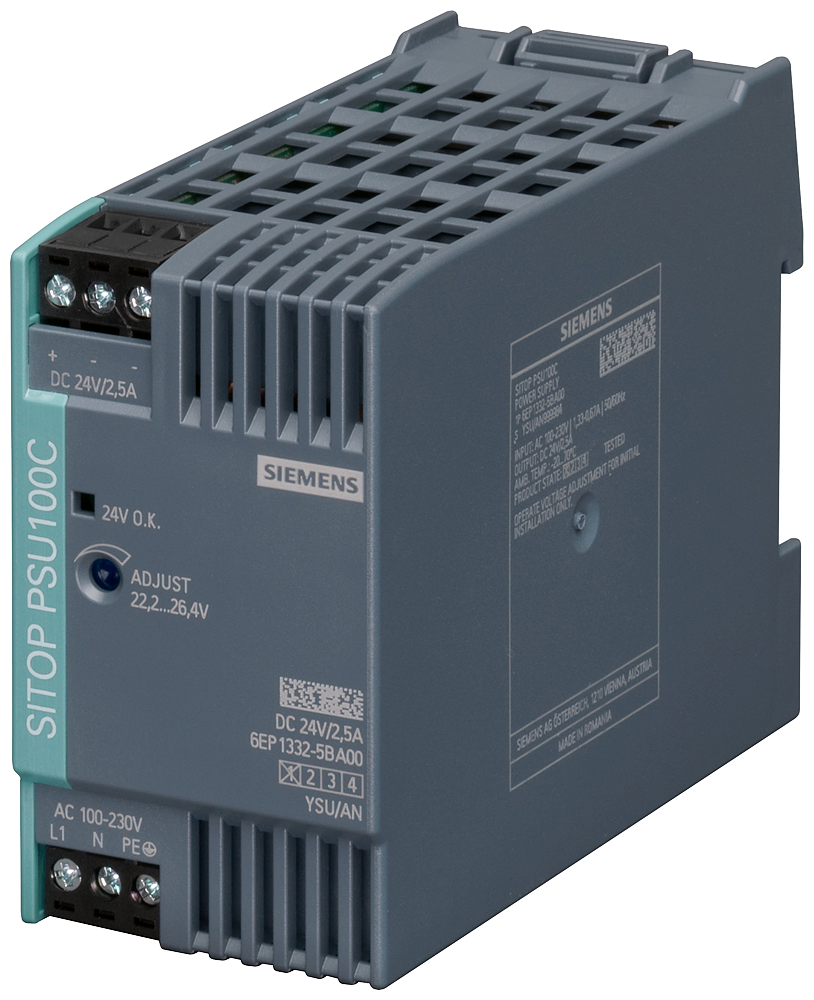

Siemens 6EP1332-5BA00 SITOP PSU100C 24V/2.5A AC/DC Power Supply

The Siemens 6EP1332-5BA00 is a SITOP PSU100C power supply with a wide-range 100-230 V AC or 110-300 V DC input, delivering a stabilized 24 V DC output at up to 2.5 A. Efficiency reaches 87%, and the compact 45 x 80 x 100 mm housing weighs 0.22 kg with an MTBF of 2,881,014 hours at 40°C.

Technical Specifications

Certifications & Standards

• CE
• EAC
• CB
• Shipbuilding
• ABS
• DNV
• EPD

Selection Notes

The dual-rated input — 100-230 V AC or 110-300 V DC — lets one unit serve panels wired for either supply type without a different part number, while the 2.5 A output keeps the enclosure compact at 45 x 80 x 100 mm. Marine classification (ABS, DNV) and the -20°C to +70°C operating range support installations exposed to wider temperature swings or requiring shipboard approval, and the removable spring-type terminal 6EP1971-5BA00 simplifies wiring changes without disturbing the supply body.

Applications

DIN-rail 24 V DC supply for control cabinets on mixed AC/DC infrastructure, or in marine and offshore panels where ABS/DNV classification is a project requirement alongside a 2.5 A / 60 W load budget.
