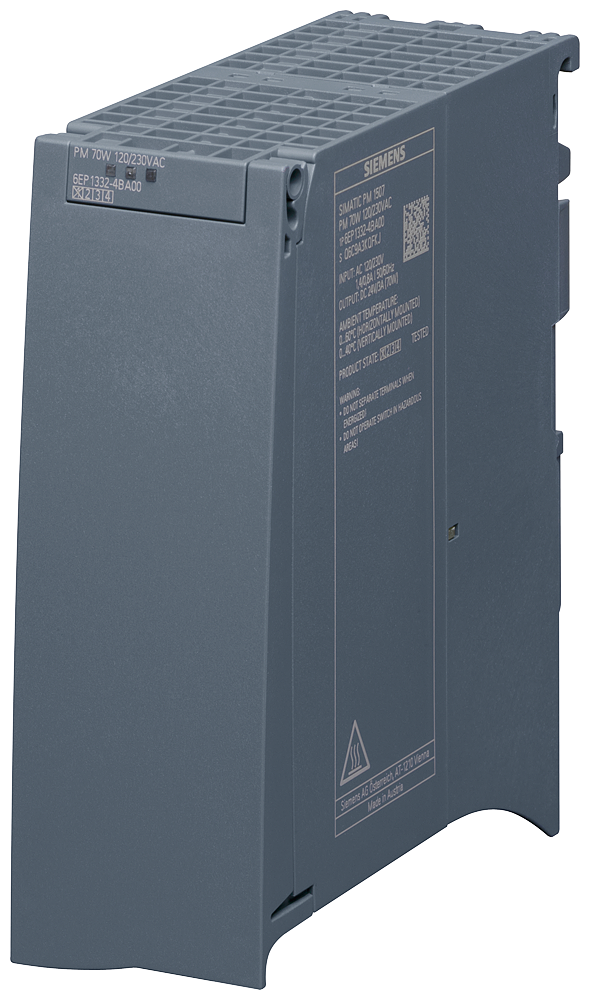

Siemens 6EP1332-4BA00 PM 1507 S7-1500 Power Module 24 V DC/3 A PLC Power Supply

% $-180.11
Siemens 6EP1332-4BA00 PM 1507 S7-1500 PLC Power Supply – 24 V DC / 3 A, 87% efficiency, IP20
Siemens 6EP1332-4BA00 PM 1507 S7-1500 PLC Power Supply – 24 V DC / 3 A, 87% efficiency, IP20

Siemens 6EP1332-4BA00 PM 1507 S7-1500 Power Module 24 V DC/3 A PLC Power Supply

Brand: Siemens
Reference No: 6EP1332-4BA00
Catalog No: 6EP1332-4BA00
Series: SIMATIC S7-1500
Tariff Code (HS): 85044083
Rated Current: 3 A
Power: 0.072
Rated Voltage: 120/230 V AC
Stock: 6
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$180.11

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6EP1332-4BA00 is the PM 1507 power module for the SIMATIC S7-1500 system, delivering a stabilized 24 V DC / 3 A output from a single-phase 120/230 V AC input with automatic range selection. At 87% efficiency and 72 W active power output, it dissipates only 11 W at full load. Galvanic isolation provides SELV / ES1 output classification per IEC 62368-1.

Technical Specifications

Catalog No. (MLFB) 6EP1332-4BA00
EAN 4025515152705
Brand Siemens
Series SIMATIC S7-1500
Product Type Designation PM 1507
Product Designation S7-1500 Power Module
Type of Current Supply 24 V / 3 A
Input Network Type 1-phase AC
Input Voltage 120 V (85–132 V) / 230 V (170–264 V), automatic range selection
Supply Voltage at 50 Hz 230 V
Supply Voltage at 60 Hz 120 V
Line Frequency 50/60 Hz (45–65 Hz)
Input Current at 120 V 1.4 A
Input Current at 230 V 0.8 A
Inrush Current (max, 25 °C) 23 A for 3 ms
I²t Value (max) 1.3 A²·s
Overvoltage Overload Capability 2.3 × Vin rated, 1.3 ms
Mains Buffering Time (min) 20 ms at Vin = 93/187 V
Internal Fuse T 3.15 A / 250 V (not accessible)
Recommended Feeder MCB 10 A characteristic B or 6 A characteristic C
Output Voltage (rated) 24 V DC
Output Voltage Tolerance ± 1 %
Output Current (rated) 3 A (range: 0–3 A)
Active Power Output (typical) 72 W
Efficiency 87 %
Power Loss at Full Load (typical) 11 W
Residual Ripple (max) 50 mV
Voltage Peak (max) 150 mV
Soft Start / Output Overshoot No overshoot (soft start)
Voltage Increase Time (typical) 10 ms
Response Delay (max) 1.5 s
Short-Circuit Current (typical) 12 A for 70 ms
Current Limitation Response Value 3.15–3.6 A (typical 3.4 A)
Short-Circuit Protection Electronic shutdown, automatic restart
Overvoltage Protection Additional control loop, limitation at < 28.8 V
Parallel Operation Up to 2 units for increased power
Galvanic Isolation Yes — SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
Protection Class Class I
IP Rating IP20
Leakage Current (max / typical) 3.5 mA / 0.4 mA
Control Precision — Input Voltage Fluctuation (slow) 0.1 %
Control Precision — Input Voltage Fluctuation (rapid ±15%) 0.1 %
Control Precision — Load Step 50/100/50 % 1 %
Control Precision — Load Step 10/90/10 % 3 %
Settling Time (load step, max) 5 ms
Status Indication LED green (24 V OK), LED red (error), LED yellow (standby)
Input Connection Screw terminal, 1 × L, N, PE; 0.5–2.5 mm² (removable)
Output Connection Spring-loaded terminals, 2 × L+, M; 0.5–2.5 mm² (removable)
Operating Temperature 0–60 °C (horizontal, natural convection); 0–40 °C (vertical)
Storage / Transport Temperature -40 to +85 °C
Environmental Category IEC 60721 Climate class 3K3, 5–95% RH, no condensation
EMC — Emitted Interference EN 55022 Class B
EMC — Mains Harmonics EN 61000-3-2
EMC — Immunity EN 61000-6-2
MTBF at 40 °C 1 611 993 h
Mounting S7-1500 DIN rail; butt-mountable (0 mm lateral clearance)
Required Spacing — Top / Bottom 40 mm / 40 mm
Dimensions (W × H × D) 50 × 147 × 129 mm (installation height: 205 mm)
Net Weight 0.45 kg
Country of Origin RO (Romania)
HS Code 85044083

Certifications & Standards

  • CE
  • UKCA
  • EAC
  • RCM
  • CB
  • UL 508
  • CSA C22.2 No. 142
  • BIS
  • IEC 62368-1
  • IEC 61204-7
  • EN 55022 Class B
  • EN 61000-3-2
  • EN 61000-6-2
  • ABS
  • BV
  • DNV

Selection Notes

The 6EP1332-4BA00 supplies 3 A at 24 V DC — sufficient for a compact S7-1500 station with a CPU plus a handful of I/O modules drawing up to 72 W combined. Its 20 ms mains buffering at Vin = 93/187 V covers brief supply dips without triggering a CPU restart. Where the station load exceeds 3 A, two PM 1507 units can be paralleled without additional hardware. Vertical mounting is permissible but derate the ambient limit to 40 °C; horizontal mounting retains the full 0–60 °C range. Choose the higher-rated PM 1507 5 A variant (6EP1333-4BA00) when module count or powered field devices push the 24 V bus above 72 W.

Technical Details

Short Description
Siemens PM 1507 24 V DC/3 A stabilized power module for SIMATIC S7-1500, 120/230 V AC input, 87% efficiency, IP20.
Rated Current (Ampere)
3 A
Rated Voltage (VAC)
120/230 V AC
Mounting Type
S7-1500 DIN rail
Protection Type
IP20
Catalog No
6EP1332-4BA00
Standards
CE marking, UKCA marking, EAC approval, Regulatory Compliance Mark (RCM), CB-certificate, shipbuilding approval, American Bureau of Shipping Europe Ltd. (ABS), French marine classification society (BV), Det Norske Veritas (DNV), Environmental Product
Power (kW)
0.072
Delivery Date (Days)
1-2 days
Model Number
6EP1332-4BA00
Tariff Code
85044083
