Siemens 6AV7674-1MG00-0AA0 SIMATIC HMI Illuminated Pushbutton 1NO+1NC 24V HMI Accessory

% $-41.96

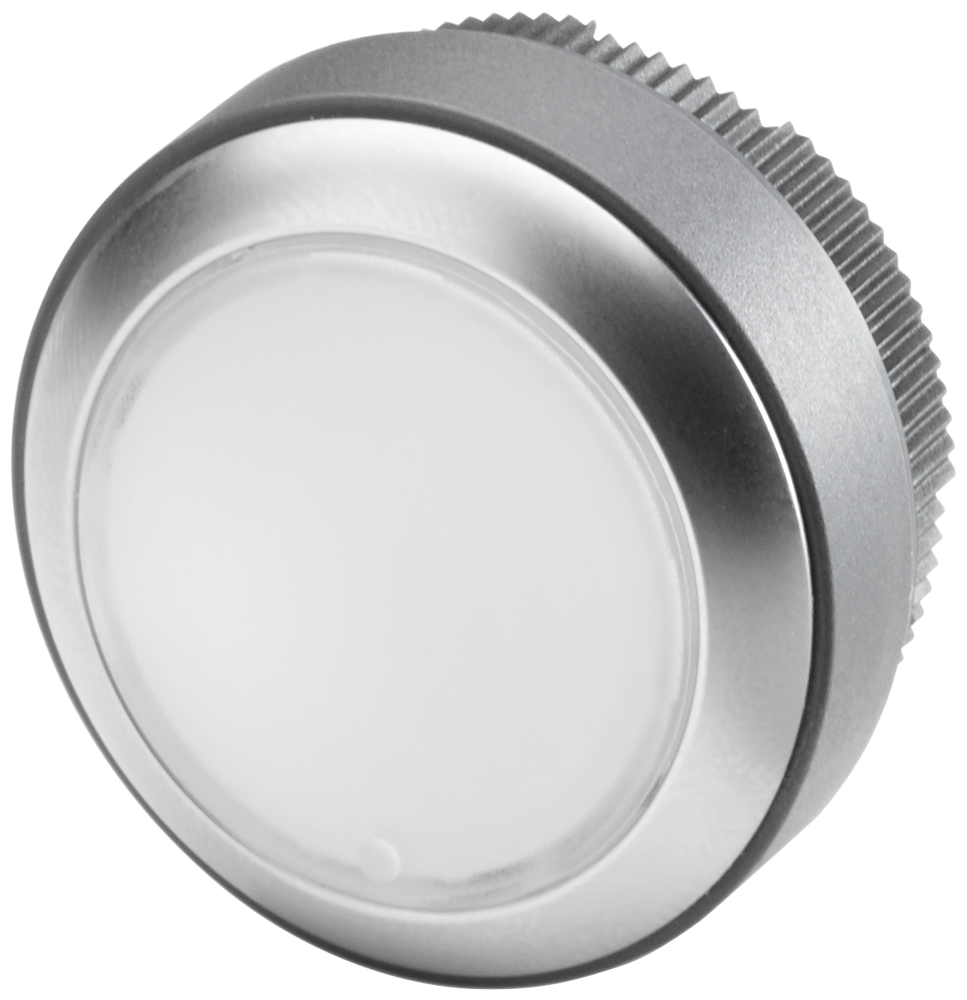

Siemens 6AV7674-1MG00-0AA0 illuminated pushbutton HMI Extension Unit - 22mm 1NO 1NC 24V
Siemens 6AV7674-1MG00-0AA0 illuminated pushbutton HMI Extension Unit - 22mm 1NO 1NC 24V

Siemens 6AV7674-1MG00-0AA0 SIMATIC HMI Illuminated Pushbutton 1NO+1NC 24V HMI Accessory

Brand: Siemens
Reference No: 6AV7674-1MG00-0AA0
Catalog No: 6AV7674-1MG00-0AA0
Series: SIMATIC HMI
Tariff Code (HS): 85365080
Rated Current: 0.1 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$41.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6AV7674-1MG00-0AA0 is a 22 mm illuminated pushbutton for front mounting in a SIMATIC HMI Extension Unit, wired as 1 NO contact plus 1 NC contact and lit by an integrated white LED behind six interchangeable colored lenses. It runs on a 24 V DC supply drawing 100 mA and holds IP65 at the front to EN 60529 and NEMA 4. The kit includes the pushbutton, printed circuit board with contact module, and mounting accessories.

Technical Specifications

SKU 6AV7674-1MG00-0AA0
Brand Siemens
Series SIMATIC HMI
EAN 4047623409250
Product type designation Illuminated pushbutton for Extension Unit (1 NC / 1 NO)
Actuating element Pushbutton with flat button, round, momentary contact
Illumination Integrated white LED, translucent white lens (color set by disk)
Contact configuration 1 NC contact, 1 NO contact
Mounting type Threaded ring, front plate attachment (16:9 PRO devices)
Rated supply voltage 24 V DC
Current consumption, rated 100 mA
IP degree, front IP65 (EN 60529, NEMA 4)
Ambient temperature, operation 0 to 50 °C
Ambient temperature, storage/transport -20 to 60 °C
Installation altitude, max. 3500 m
Relative humidity, max. 90 %
Material Plastic actuating element and front ring
Color, front ring Silver metallic
Operating cycles 1,000,000
Height of housing front 9.85 mm
Mounting diameter 22.3 mm
Weight (without packaging) 50 g
Weight (with packaging) 100 g
Scope of supply 1 pushbutton, PCB with contact module, 5 colored lenses (colorless, red, yellow, green, blue), mounting accessories
Target devices 16:9 HMI/IPC PRO device Extension Units
Country of origin DE

Certifications & Standards

  • CE
  • UKCA

Technical Details

Short Description
22 mm illuminated pushbutton for HMI Extension Unit, 1NO+1NC, 24V DC, IP65 front, 6 lens colors.
Rated Current (Ampere)
0.1 A
Rated Voltage (VAC)
24 V
Mounting Type
Threaded ring, front plate attachment
Protection Type
IP65 (front)
Catalog No
6AV7674-1MG00-0AA0
Standards
CE mark, UKCA mark
Delivery Date (Days)
10-15 days
Model Number
6AV7674-1MG00-0AA0
Tariff Code
85365080
