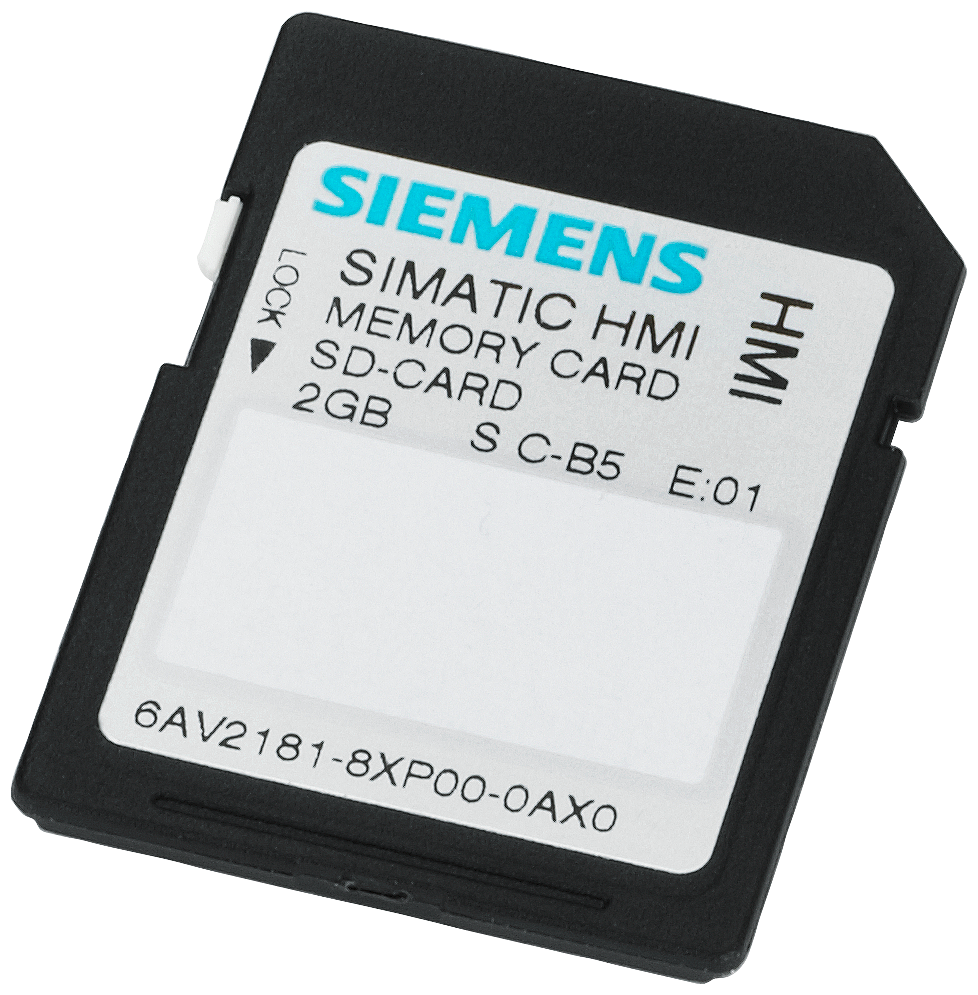

Siemens 6AV2181-8XP00-0AX0 SIMATIC SD Memory Card 2GB HMI Accessory

The Siemens SIMATIC SD memory card 2 GB (6AV2181-8XP00-0AX0) is a Secure Digital card rated 3.3 V, 100 mA, with a 600 Mbit/s typical read/write rate and wear-leveling for the 10-year minimum data-retention target on a new card. It is intended for KTP Mobile Panels 2nd Generation, MP377, and Comfort Panels with a matching SD slot.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• UL
• cULus
• KC
• EAC
• RoHS
• China RoHS

Selection Notes

This 2 GB card targets KTP Mobile Panels 2nd Generation, MP377, and Comfort Panels; the source data explicitly flags MP177, MP277, Mobile Panel 277, OP77, TP/OP177, and Mobile Panel 177 as not supported, so confirm the target HMI's slot generation before ordering, not just the SD form factor. Wear-leveling extends write endurance for panels that log recipes or trend data continuously, and the card must not be reformatted outside the target device's own file system.

Applications

Program, recipe, and data-log storage for SIMATIC HMI panels with an SD slot - KTP Mobile Panels 2nd Generation, MP377, and Comfort Panels - and general project transfer between engineering PCs and panels in the field.
