Siemens 6AV2128-3QB27-0AX0 SIMATIC MTP1500 PRO 15.6-inch Support Arm HMI Operator Panel

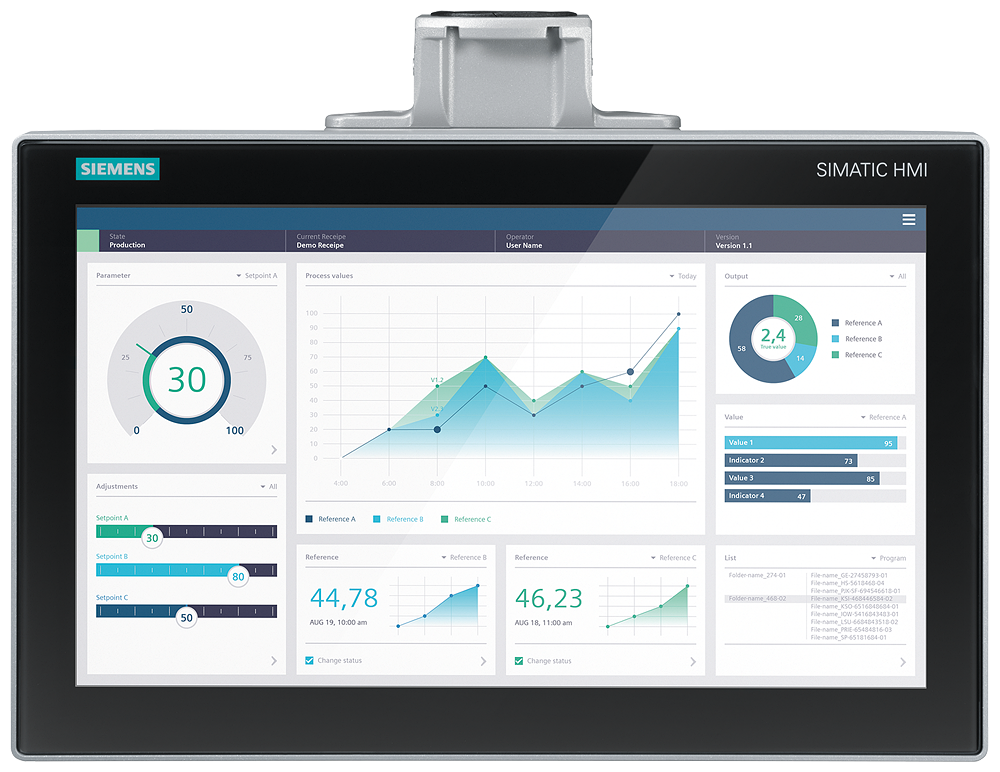

The Siemens 6AV2128-3QB27-0AX0 is a SIMATIC HMI MTP1500 PRO Unified Comfort operator panel with a 15.6-inch widescreen TFT touchscreen at 1366 x 768 pixels and 16.7 million colors. It mounts on a non-expandable support arm with the flange on top, sealed to IP65 front and rear, and runs on 24V DC with a PROFINET interface configurable from WinCC Unified Comfort V18.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• FM
• RCM
• KC
• EAC
• CCC

Selection Notes

The fixed, non-expandable support-arm flange on top makes this the base configuration for a swing-arm HMI station where the mounting geometry is set once. IP65 front and rear plus NEMA Type 4/4x/12 let it sit in a washdown-adjacent or outdoor-facing cell without the stainless hygienic housing used on the MTP1500 Hygienic variant. At 15.6 inches it is the largest screen in the MTP1000-1500 PRO line, suited to overview or recipe-heavy screens where the 12.1-inch panel runs out of room. Choose the -0BX0 extension unit instead when the arm needs to expand later.
