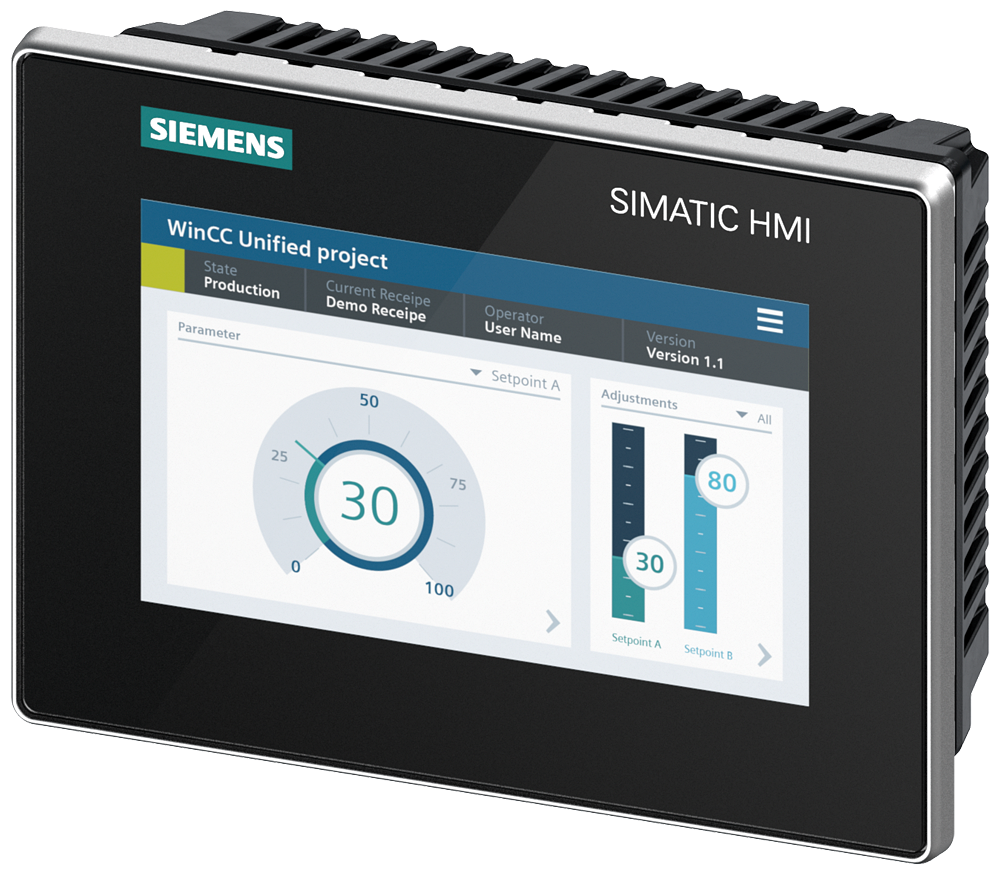

Siemens 6AV2128-3GB06-0AX1 SIMATIC HMI MTP700 Unified Comfort Panel 7in PROFINET

The Siemens 6AV2128-3GB06-0AX1 is a SIMATIC HMI MTP700 Unified Comfort Panel with a 7-inch, 800x480 multi-touch TFT display in 16.7 million colors. It runs on 24V DC, integrates a 2-port PROFINET switch plus 4 USB 3.1 ports and 2 SD card slots, and carries an IP65-rated front for panel-door mounting.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• RCM
• KC
• EAC
• CCC
• ABS
• BV
• DNV

Selection Notes

The MTP700's 2-port integrated PROFINET switch supports line-topology wiring without a separate switch, and MRP client support lets it join a ring network for bump-less recovery from a single cable fault. The IP65 front rating with NEMA 4X/12 covers washdown and dust-exposed panel-door mounting; the IP20 rear rating means the enclosure behind the door still needs its own protection. Four USB 3.1 ports and dual SD slots on this Unified Comfort Panel support recipe and log storage on removable media without opening the panel — pick a larger-screen Unified Comfort Panel in the family only if the application needs more on-screen faceplates or trend curves than a 7-inch layout allows.

Applications

Used as the primary operator interface on PROFINET-networked machines and lines built in TIA Portal with WinCC Unified — panel-door HMI stations in packaging, material handling, and process skids where washdown-rated touch operation and network redundancy matter.
