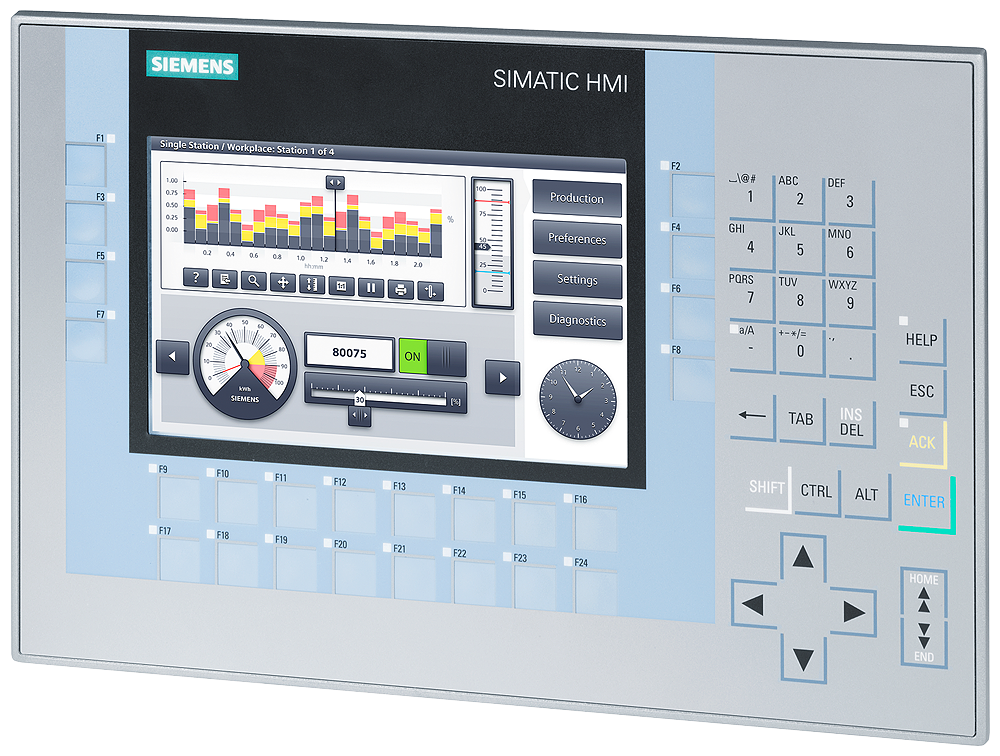

Siemens 6AV2124-1GC01-0AX0 SIMATIC HMI KP700 Comfort 7in Key Panel PROFINET

Siemens SIMATIC HMI KP700 Comfort 6AV2124-1GC01-0AX0 is a 7in widescreen TFT key-operated panel with 800x480 resolution and 24 backlit function keys, running from a 24 V DC supply. It carries PROFINET, PROFIBUS/MPI, and EtherNet/IP interfaces with 12 MB of configuration memory, an integrated 2-port Ethernet switch, and IP65 front protection.

Technical Specifications

Certifications & Standards

• CE
• cULus
• RCM
• KC
• GL
• ABS
• BV
• DNV
• LRS
• Nippon Kaiji Kyokai

Selection Notes

Twenty-four backlit function keys - three times the 8 on the KP400 Comfort - make this panel suited to machines needing dedicated buttons per function rather than screen-based navigation, while the shared IP65/NEMA 4x front rating and marine class-society approvals carry over from the smaller panel. The integrated 2-port Ethernet switch, absent on the KP400 Comfort, allows daisy-chaining a PROFINET line without an external switch. Choose this 7in KP700 over the touch-based TP2200 when the installation environment - gloves, vibration, washdown - makes a touch surface unreliable.

Applications

Fits machine-local control panels needing more discrete function keys than the KP400 Comfort provides - press and forming machine operator stations, marine control panels, and cabinets where a touch screen is impractical but PROFINET/PROFIBUS connectivity is required.
