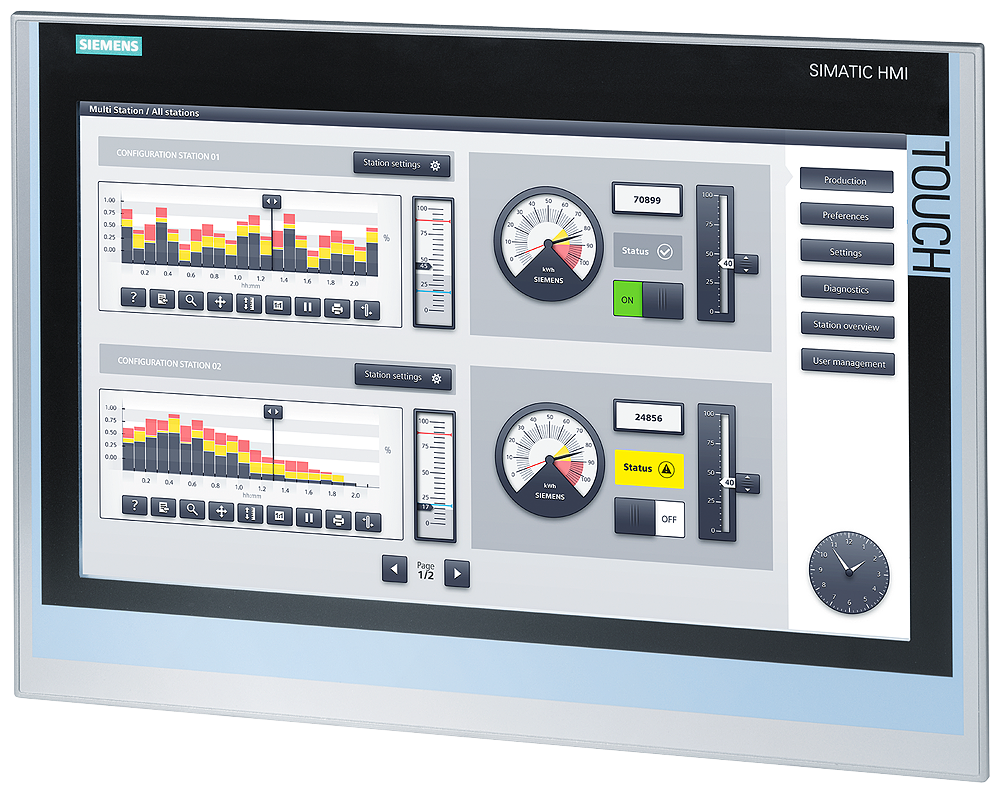

Siemens 6AV2124-0UC02-0AX1 SIMATIC TP1900 Comfort 19-inch PROFINET HMI Operator Panel

The Siemens SIMATIC TP1900 Comfort (6AV2124-0UC02-0AX1) is a 19-inch widescreen touch HMI panel with a 1366 x 768 TFT display, 16.7 million colors, PROFINET and MPI/PROFIBUS DP interfaces, and 24 MB of configuration memory. It runs Windows Embedded Compact 2013, supports up to 32 online runtime languages, and carries an IP65 front rating for panel-door mounting.

Technical Specifications

Certifications & Standards

• CE
• cULus
• RCM
• KC
• EAC

Selection Notes

The 19-inch 1366 x 768 display and dual PROFINET switch ports (plus an independent third port) suit machine HMI applications that also need to daisy-chain a downstream PLC or I/O station without an external switch. The IP65 front rating supports flush panel-door mounting, while the 0-45 °C operating range in vertical installation is the limiting factor for control-cabinet placement above ambient. Smaller Comfort Panel sizes in the same family cover lower-cost, space-constrained machines where 24 MB of configuration memory is still sufficient.

Applications

Suited for machine-level operator interfaces in packaging, material handling, and process skids where PROFINET/PROFIBUS/EtherNet-IP multi-protocol connectivity lets one panel bridge mixed-fieldbus cells, and the 32 online languages support multi-region OEM machine builds.
