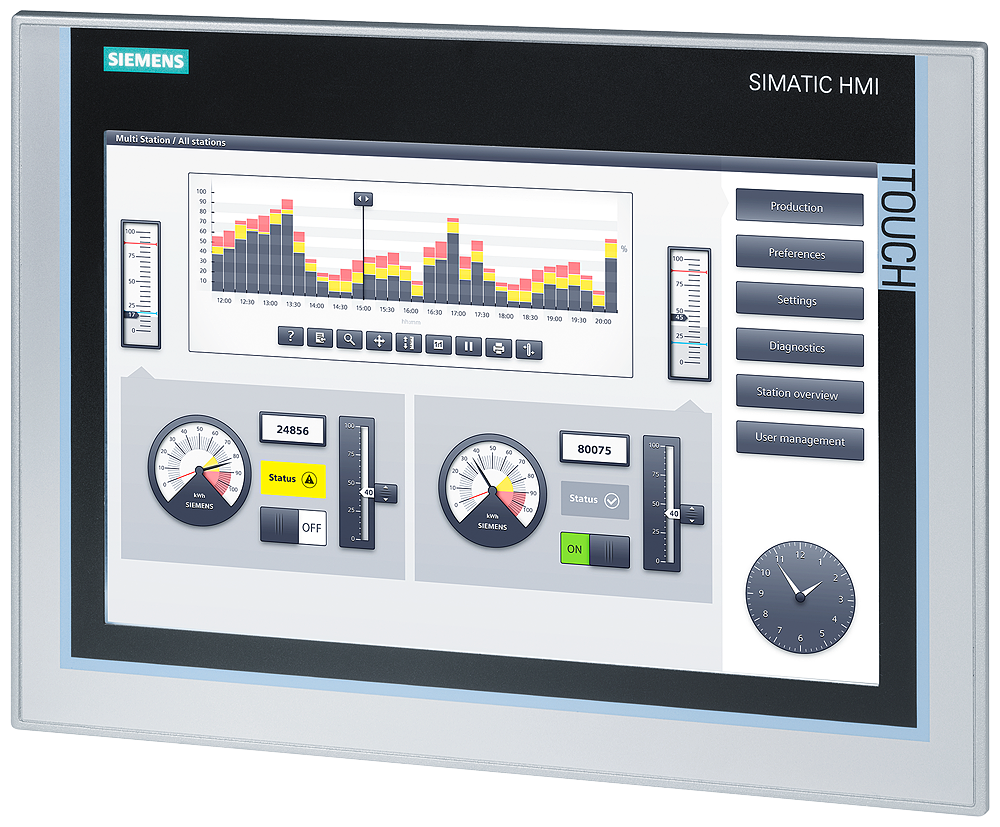

Siemens 6AV2124-0MC01-0AX0 SIMATIC HMI TP1200 Comfort 12in PROFINET Touch Operator Panel

The Siemens 6AV2124-0MC01-0AX0 is a SIMATIC HMI TP1200 Comfort panel with a 12.1in widescreen TFT touch display at 1280x800 resolution and 16.7 million colors, supporting PROFINET and PROFIBUS/MPI networking. It runs on 24V DC, draws 0.85A rated current, and is configured from WinCC Comfort V11 or later in TIA Portal.

Technical Specifications

Certifications & Standards

• CE mark
• cULus
• RCM
• KC approval

Selection Notes

The 12.1in widescreen format gives more overview and recipe-screen real estate than the smaller Comfort panels, which matters for machines with multi-step recipe navigation. The built-in 2-port Ethernet switch supports line-topology PROFINET networking between panels or drives without an external switch, and the combined RS422/485 port lets this panel also reach PROFIBUS or MPI-only legacy controllers where PROFINET is not available. IP65 front sealing with NEMA 4/4X rating fits panel cutouts exposed to washdown or dust, which a lower-rated panel would not tolerate.

Applications

Panel-mount machine HMI for PROFINET/PROFIBUS S7-1200/S7-1500 visualization, recipe management and multi-language operator interfaces on machinery built for washdown or dusty industrial environments.
