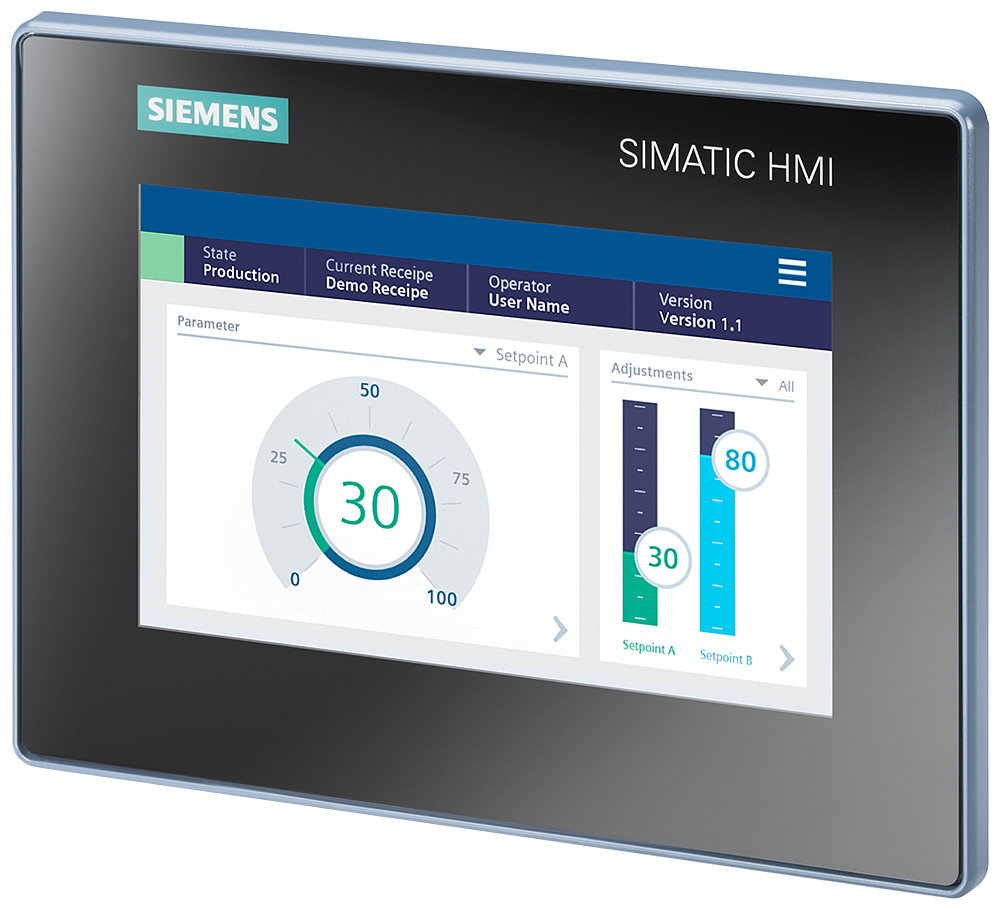

Siemens 6AV2123-3GB32-0AW0 SIMATIC MTP700 Unified Basic 7-Inch PROFINET HMI Operator Panel

The Siemens 6AV2123-3GB32-0AW0 is a SIMATIC MTP700 Unified Basic HMI panel with a 7-inch widescreen TFT touchscreen, 800 x 480 pixel resolution, and 16.7 million colors. It runs on WinCC Unified Basic (TIA Portal V18 Update 3 or later) and connects over a single Gigabit PROFINET interface. The front panel carries an IP65 / NEMA 4X rating for washdown and dusty-environment mounting.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• RCM
• KC
• DNV
• KRS
• LRS
• Class NK
• CCS

Selection Notes

The single Gigabit PROFINET port, with a one-port integrated switch, means this panel takes a home-run drop rather than daisy-chaining to the next network node — plan cabinet topology accordingly. IP65 sealing at the front lets it sit flush in a cabinet door for washdown or dusty environments, but the IP20 rear still needs an enclosed cabinet behind it. The 250 x 250 x 250 recipe structure (5 MB, expandable) covers machines that need per-product parameter sets without a separate PC-based recipe manager, and 32 runtime languages support multi-language HMI screens on a single unit for export machine builds.

Applications

Machine operator interfaces on PROFINET-networked automation cells, panel-door mounted HMIs in washdown or dusty production areas, and multi-language machine exports where a single panel image needs to serve operators in different countries.
