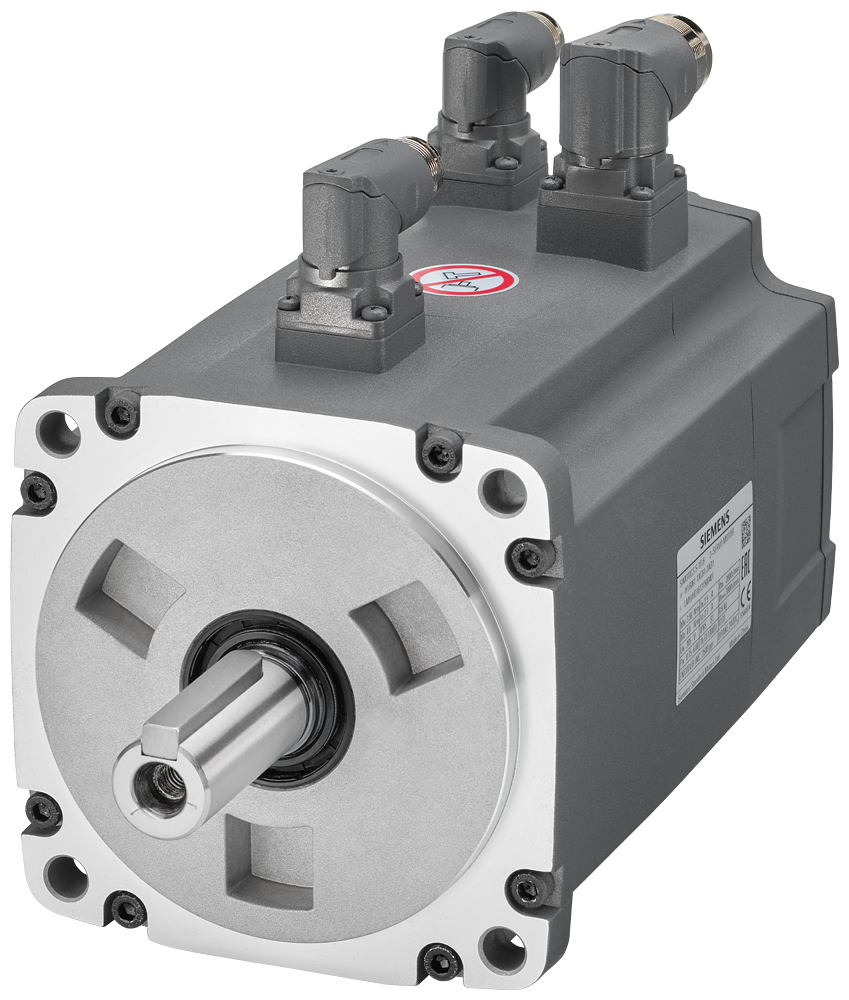

Siemens 1FL6062-1AC61-2AA1 SIMOTICS S-1FL6 3AC 400V 1kW 2000rpm IP65 Servo Motor

The Siemens 1FL6062-1AC61-2AA1 is a SIMOTICS S-1FL6 servo motor rated 1.00 kW at 2000 rpm on a 3AC 400 V supply, with 4.78 Nm rated torque, 14.30 Nm maximum torque, and a 2500 incr/rev incremental encoder. It has shaft height 65 mm, IP65 protection with sealing ring, and pairs with SINAMICS V70/V90 converters.

Technical Specifications

Selection Notes

The 4.78 Nm rated torque at 2000 rpm and 14.30 Nm peak torque size this shaft-height-65 motor for mid-range servo axes; the angle-plug connector and 2500 incr/rev incremental encoder pair it specifically with SINAMICS V70/V90 drives rather than the higher-resolution absolute-encoder variants used with SINAMICS S120/S210. It ships without a holding brake, so vertical or overhauling loads need an external brake or a brake-equipped sibling motor from the same shaft-height-65 frame. Natural (fanless) cooling caps continuous duty below the rated current of 3.0 A — check the duty cycle against the 9 A peak-current window for short-term overload moves.

Applications

Drives servo axes on packaging, material-handling, and general motion-control machinery built around SINAMICS V70/V90, where a shaft-height-65, 1 kW motor with incremental feedback matches the required torque and speed range.
