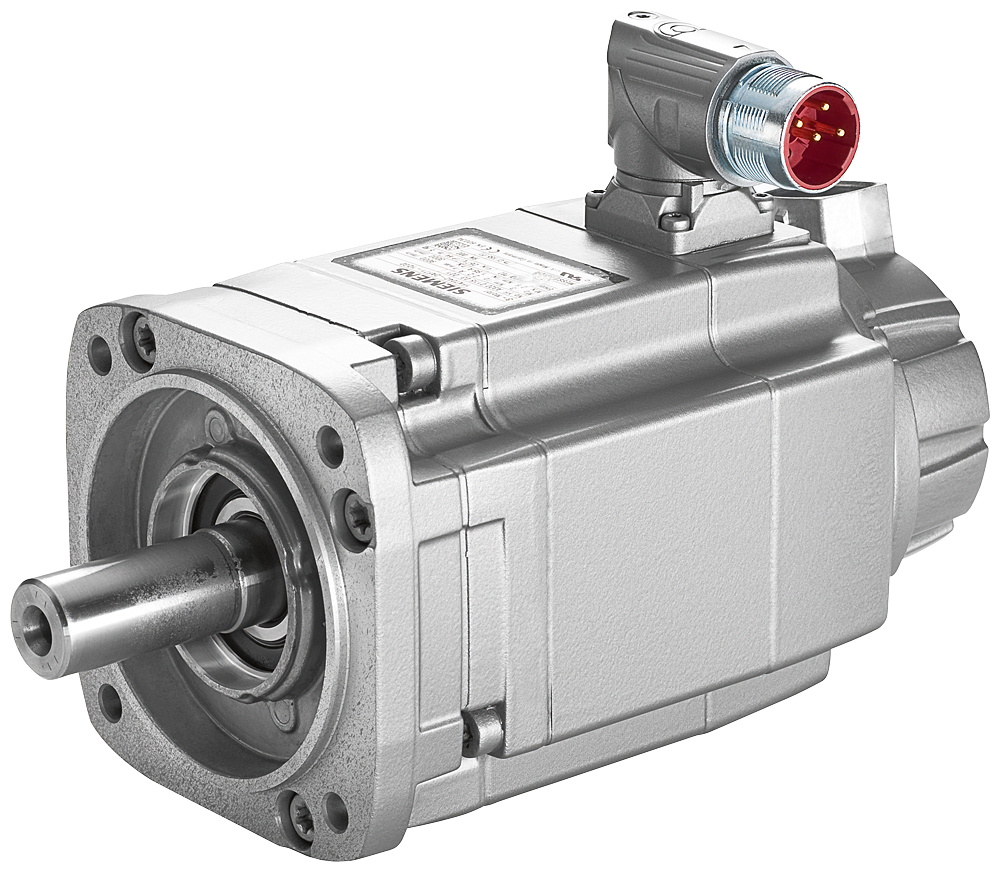

Siemens 1FK7042-2AK71-1QA0 SIMOTICS S-1FK7 1FK7-CT 0.94kW 3Nm 6000rpm Servo Motor

The Siemens 1FK7042-2AK71-1QA0 is a SIMOTICS S-1FK7 (1FK7-CT) permanent-magnet synchronous servo motor rated 0.94 kW at 6,000 rpm, delivering 3 Nm standstill torque (M0, 100K) from a 600 V DC link. It has no holding brake, carries a single-turn 20-bit DRIVE-CLiQ absolute encoder (AS20DQI), and is naturally cooled in a shaft height 48, IMB 5 (IM V1/V3) housing rated IP64.

Technical Specifications

Selection Notes

This is the highest rated-speed 1FK7042 winding in this batch, rated 6,000 rpm at the same 3 Nm standstill torque as the other windings in this frame, with the lowest torque constant (0.68 Nm/A) and winding resistance (1.15 Ω) of the four — it draws the least current per unit torque at high speed (2.5 A rated). Choose it over the 2,000 or 3,000 rpm windings when the axis needs a wide, high-speed range; choose a lower-speed winding when the application is torque-limited rather than speed-limited, since the optimum speed rating for continuous operation is 5,000 rpm, below the 6,000 rpm nominal. No holding brake is fitted.

Applications

Used as the servo motor in high-speed machine axes — spindle-style rotary axes, fast pick-and-place, and winding or unwinding stations — driven through a DRIVE-CLiQ-based servo drive via the AS20DQI single-turn absolute encoder interface. The naturally-cooled IMB 5 housing suits panel- or machine-frame-mounted installations without forced-air cooling.
