Schneider Electric XACA9411

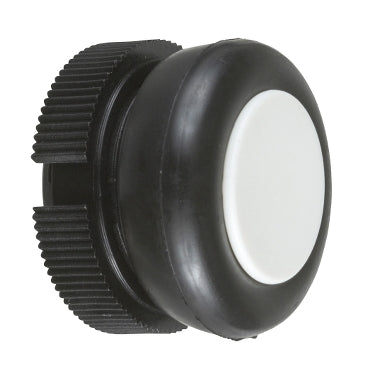

Upgrade the control interface on your industrial equipment with the Schneider Electric XACA9411 round push-button head from the Harmony XAC family. Designed for durability, hygiene, and dependable performance, this actuator head is ideal for harsh environments like food processing, outdoor installations, or any application requiring high protection and easy cleaning.

Key Features & Benefits

• Booted & Spring-Return Design
  The button head includes a protective boot and uses a spring-return (impulse) mechanism, ensuring that the button returns to its neutral position after actuation.

• High Protection Rating (IP65)
  Sealed to protect against dust ingress and water jets, making it suitable for use in wet, dusty, or microbial environments.

• Wide Operating Temperature Range
  Operates reliably in temperature extremes from –40 °C up to +70 °C.

• Standard 22 mm Cutout Compatibility
  Fits into the standard 22 mm panel hole, so it can be easily mounted in existing panels or pendant control stations without needing custom modifications.

• White Colour, Non-Illuminated Head
  The actuator is white, non-illuminated, and unmarked — versatile for many control schemes. Legends or contact blocks are ordered separately.

Technical Specifications

Typical Applications

• Control heads for pendant stations in cranes, hoists, and machinery arms

• Hygienic environments (e.g. food & beverage, pharmaceuticals) where sealing against ingress is critical

• Outdoor or dusty / wet industrial sites

• Extensions, replacements, or upgrades of existing control panels with 22 mm cut-outs
