ATS22C32Q, Altistart 22 Series Soft Starter, 160 kW, 320 A, 230 to 440V AC

Schneider Electric ATS22 Soft Starter Series – Overview

Schneider Electric ATS22 soft starters are compact and reliable motor starting solutions designed for smooth acceleration and deceleration of asynchronous motors in standard industrial applications. The ATS22 series focuses on reducing mechanical stress, limiting starting current, and simplifying motor starting without advanced digital control requirements. With a proven design and straightforward configuration, ATS22 soft starters are commonly used for pumps, fans, compressors, conveyors, and general-purpose machinery where controlled motor starting is required.

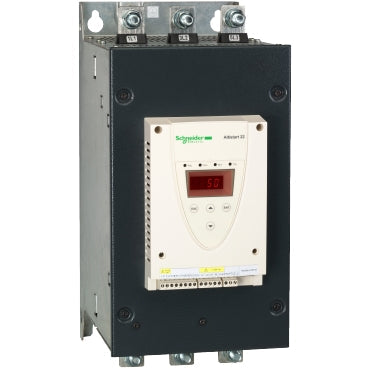

Product Description: ATS22C32Q

The Schneider Altistart ATS22C32Q is a three-phase motor soft starter rated for 320 A (Ie) with a motor power capability up to 160 kW at 400–440 V and 90 kW at 230 V in standard line switching. It accepts a supply voltage range of 230...440 V AC (50/60 Hz), making it suitable for common industrial voltage classes. Typical motor compatibility includes medium-to-large asynchronous squirrel-cage motors used on pumps, fans, compressors and conveyors where soft acceleration and reduced inrush current are required. The unit provides torque-controlled soft starting and stopping (current/torque limiting), includes an internal bypass to reduce heat dissipation during run, and offers motor protection features such as overload protection and a PTC thermistor input for motor temperature monitoring. Communication and configuration options include an RS485 interface supporting Modbus, and the ATS22 range is compatible with SoMove configuration tools—features that simplify commissioning and integration into machine control panels.

Key Soft Starter Attributes
