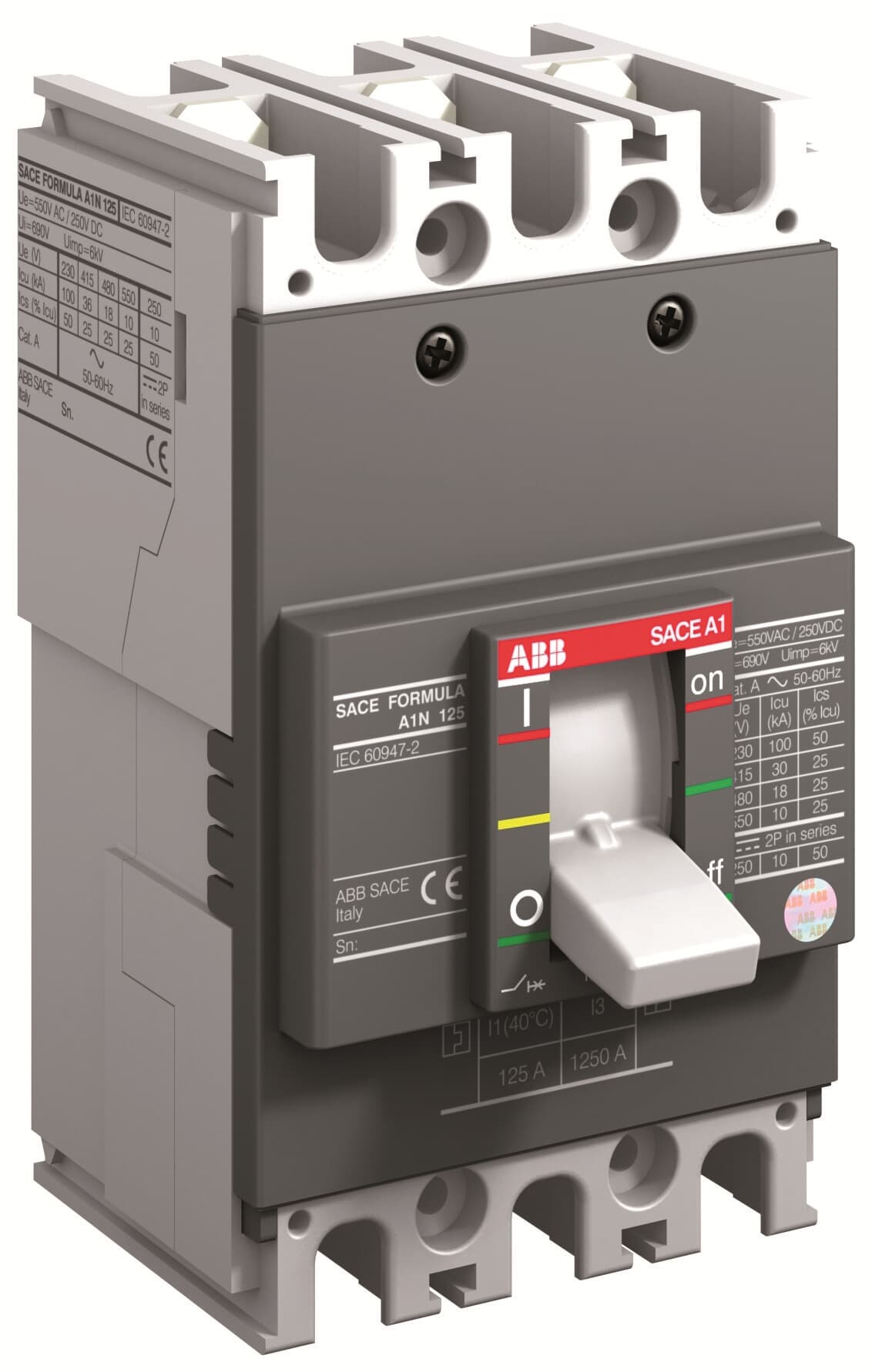

ABB 1SDA066730R1 A1N 125 TMF 90-900 3p F F
Brand:
ABB
Reference No:
1SDA066730R1
Catalog No:
A1N 125 TMF 90-900 3p F F
Tariff Code (GTIP):
85362090
ABB
€64,67
Technical Details
Rated Current (Ampere)
Main Circuit 90 A A
Breaking Capacity (kA)
(240 V AC) 100 kA kA
Catalog No
A1N 125 TMF 90-900 3p F F
Number of Poles
3P
Model Number
Formula DSA
Height (Product)
130 mm mm
Height (Box)
124 mm mm
Width (Product)
76.2 mm mm
Width (Box)
136.5 mm mm
Depth (Product)
60 mm mm
Depth (Box)
110.5 mm mm
Weight (Product)
0.75 kg kg
Weight (Box)
0.8 kg kg
Tariff Code
85362090
