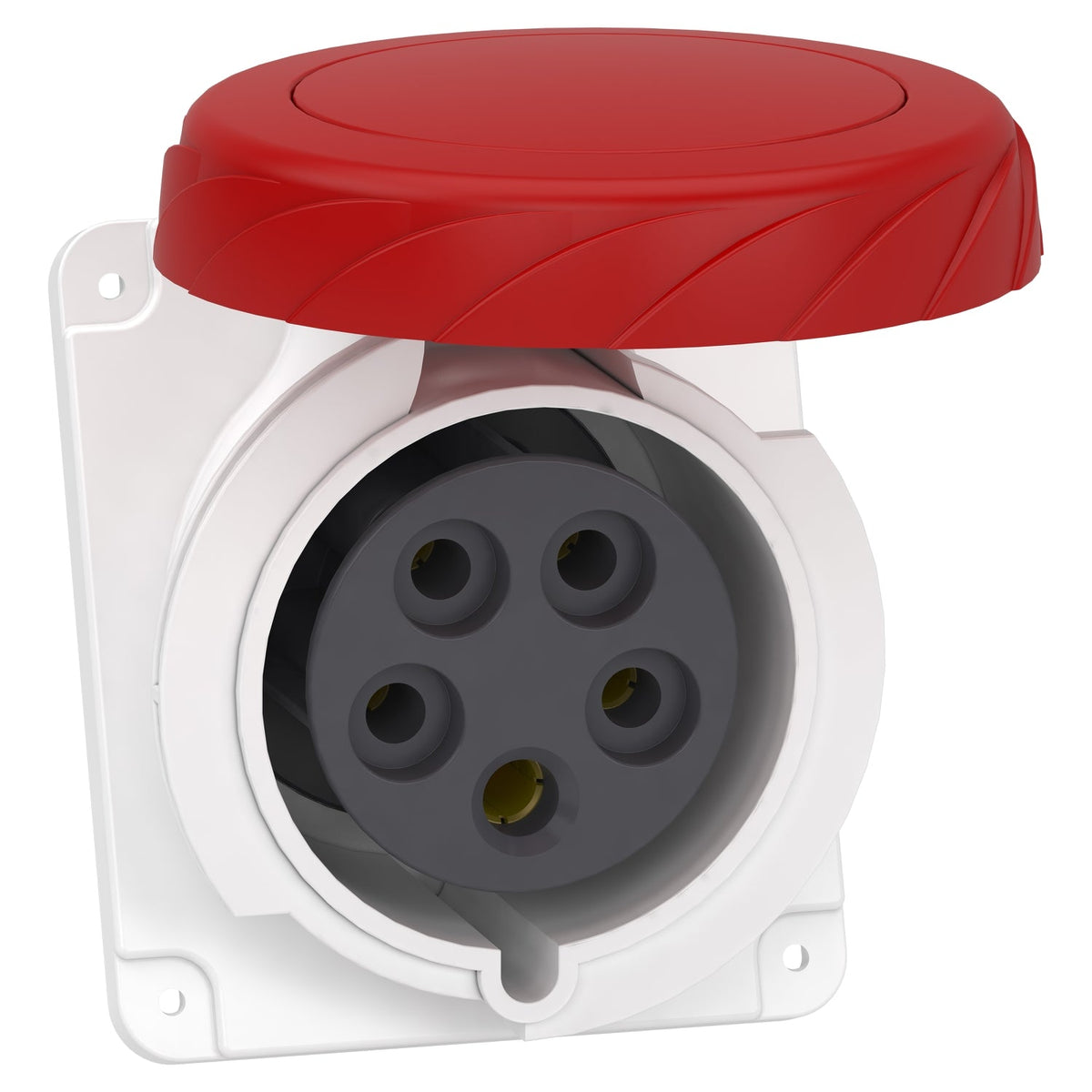

Schneider Electric PKY32F735 PratiKa Panel Socket Angled 32 A 3P+N+E 380-415 V IP67 Industrial Socket

The Schneider Electric PKY32F735 is a PratiKa industrial socket rated 32 A, 3P+N+E at 380-415 V AC, panel-mounted with an angled outlet and protected to IP67. Fast connection wires the internal connection, and the red-coded housing identifies the operating voltage on the enclosure face. It accepts a 2.5-6 mm² cable and carries an IK08 impact rating alongside the IP67 ingress protection.

Technical Specifications

Certifications & Standards

• IEC 60309-1
• IEC 60309-2

Selection Notes

This PKY32F735 is fixed to the panel, not carried on a cable, so it suits a permanent outlet point rather than a portable connection. The angled outlet shape fits enclosures where the mating socket approaches from the side; use the straight variant in the same 32 A, 3P+N+E rating where the cable run approaches straight on. IP67 covers washdown and outdoor locations at this current and pole count. The 3P+N+E configuration adds a neutral alongside the three phases and earth, so it covers mixed single-phase and three-phase loads fed from the same 380-415 V connection. Fast connection wires the incoming supply, accepting a 2.5-6 mm² conductor on this 32 A variant.
