Schneider Electric PKE32M735 Mureva PK wander plug straight 32A 3P+N+E IP67

Schneider Electric PKE32M735 Mureva PK Wander Plug Straight 32A 3P+N+E 380-415V IP67 Industrial Plug

Name: Schneider Electric PKE32M735 Mureva PK Wander Plug Straight 32A 3P+N+E 380-415V IP67 Industrial Plug
Brand: Schneider Electric
SKU: PKE32M735
Price: 18.85 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: PKE32M735

Catalog No: PKE32M735

Tariff Code (HS): 853669

Rated Current: 32 A

Rated Voltage: 380-415 V

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$18.85

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

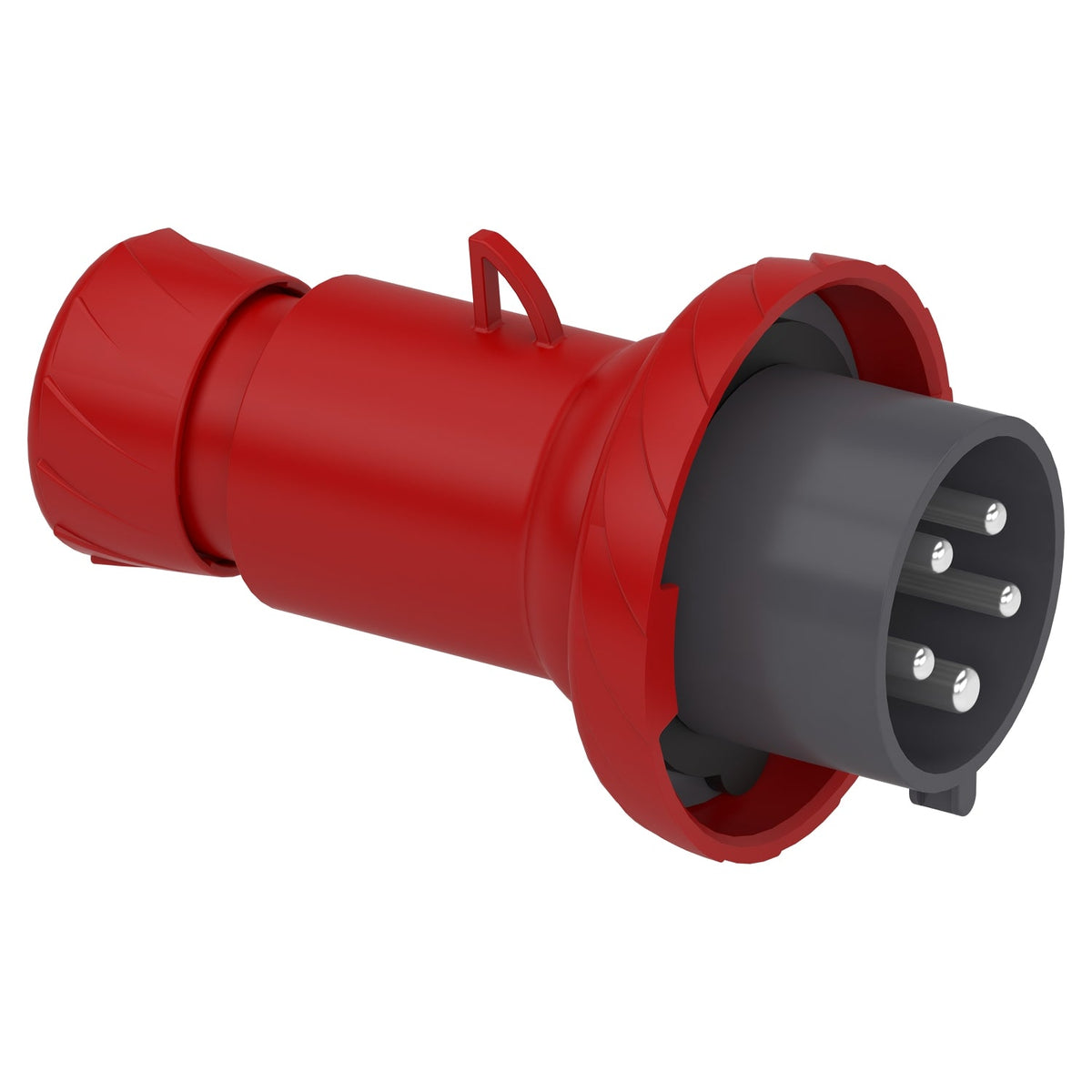

The Schneider Electric PKE32M735 is a Mureva PK straight wander plug rated 32 A, 3P+N+E, for a 380-415 V AC network at 50/60 Hz. It has captive-screw terminal connections for 2.5-10 mm² cable and reaches IP67/IK08 protection, built to withstand an 850 degC glow-wire fire-resistance test.

Technical Specifications

Reference	PKE32M735
Brand	Schneider Electric
Range	Mureva
Product Type	Wander plug
Rated Current (In)	32 A
Rated Voltage (Ue)	380-415 V
Number of Poles	3P + N + E
Network Frequency	50/60 Hz
Shape	Straight
Ground Lug Clock Position	6 h
Connection	Captive screws
Material	Self-extinguishing engineering polymer housing; brass sleeves
Cable Cross Section	2.5-10 mm²
Cable Entry	Cable gland / fair lead, Pg 21
Colour	Grey (RAL 7035), red voltage identification
IP Rating	IP67 (IEC 60529)
IK Rating	IK08 (EN 62262)
Fire Resistance	850 degC (IEC 60695-2-11)
Operating Temperature	-25 to 40 degC
Dimensions (W x H)	102 x 160 mm
Weight	0.25 kg

Certifications & Standards

IEC 60309-1
IEC 60309-2

Selection Notes

The PKE32M735 is the top of the 32 A wander-plug line: it combines a neutral pole (3P+N+E) with IP67 sealing. Choose it for outdoor or washdown three-phase feeds that also need a neutral reference for single-phase sub-loads; drop to the PKE32M435 if IP44 is sufficient, or to the PKE32M734 if no neutral is needed.

Technical Details

Short Description

Mureva PK wander plug, straight, 32A, 3P+N+E, 380-415V, IP67/IK08, screw terminals, red voltage colour.

Rated Current (Ampere)

32 A

Rated Voltage (VAC)

380-415 V

Mounting Type

Portable (wander plug)

Protection Type

IP67

Catalog No

PKE32M735

Delivery Date (Days)

30 days

Model Number

Mureva PK

Tariff Code

853669
