Schneider Electric PKE32M423 PratiKa Wander Plug Straight 32A 2P+E 200-250V IP44 Industrial Plug

% $-10.26

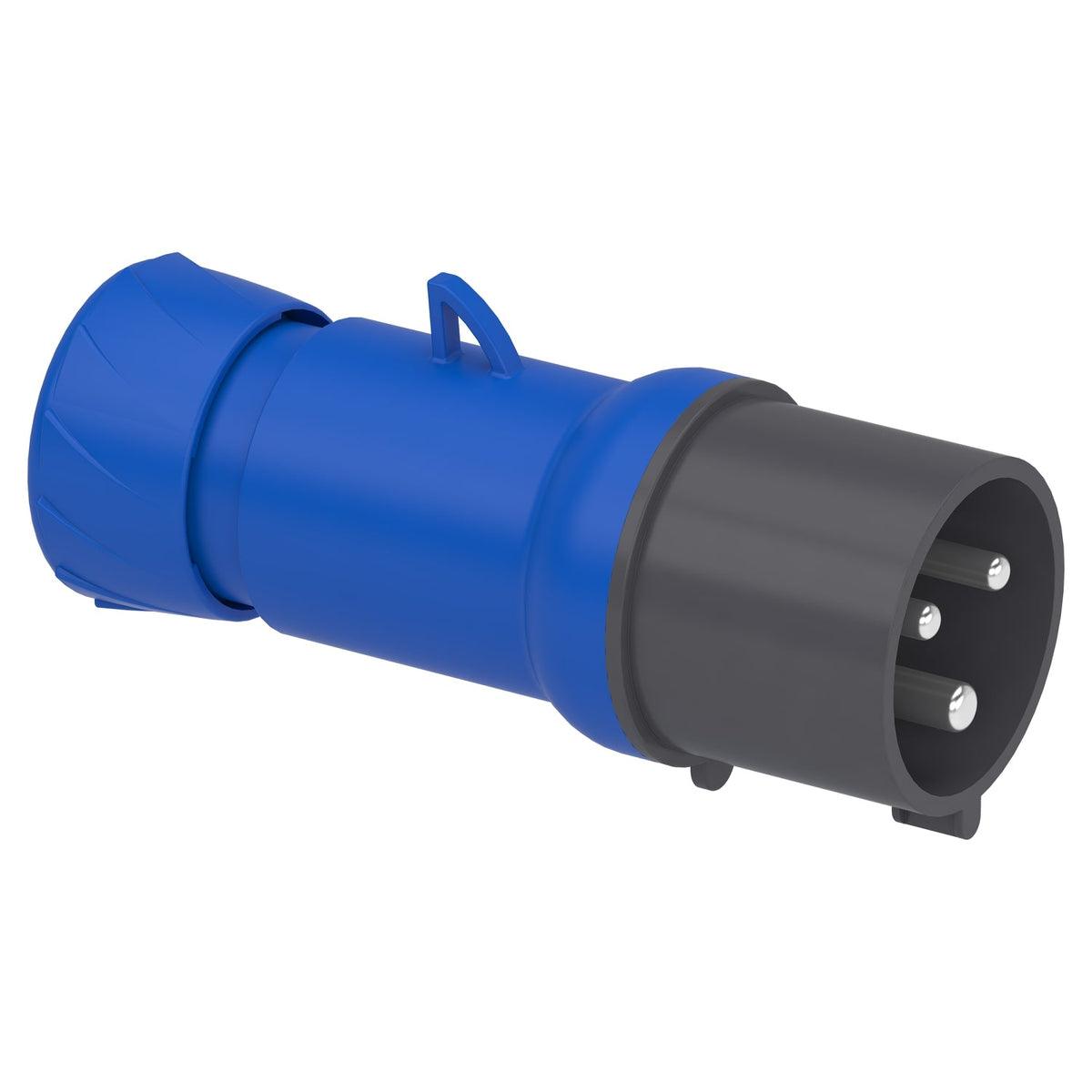

Schneider Electric PKE32M423 PratiKa wander plug straight 32A 2P+E IP44
Schneider Electric PKE32M423 PratiKa wander plug straight 32A 2P+E IP44

Schneider Electric PKE32M423 PratiKa Wander Plug Straight 32A 2P+E 200-250V IP44 Industrial Plug

Brand: Schneider Electric
Reference No: PKE32M423
Catalog No: PKE32M423
Tariff Code (HS): 853669
Rated Current: 32 A
Rated Voltage: 200-250 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$10.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric PKE32M423 is a PratiKa straight wander plug rated 32 A, 2P+E, for a 200-250 V AC network at 50/60 Hz. It has captive-screw terminal connections for 2.5-10 mm² cable and reaches IP44/IK08 protection, built to withstand an 850 degC glow-wire fire-resistance test.

Technical Specifications

Reference PKE32M423
Brand Schneider Electric
Range Mureva
Product Type Wander plug
Rated Current (In) 32 A
Rated Voltage (Ue) 200-250 V
Number of Poles 2P + E
Network Frequency 50/60 Hz
Shape Straight
Ground Lug Clock Position 6 h
Connection Captive screws
Material Self-extinguishing engineering polymer housing; brass sleeves
Cable Cross Section 2.5-10 mm²
Cable Entry Fair lead / cable gland, Pg 21
Colour Grey (RAL 7035), blue voltage identification
IP Rating IP44 (IEC 60529)
IK Rating IK08 (EN 62262)
Fire Resistance 850 degC (IEC 60695-2-11)
Operating Temperature -25 to 40 degC
Dimensions (W x H) 76 x 152 mm
Weight 0.2 kg

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

The PKE32M423 is the 32 A, single-phase (2P+E) member of the PratiKa wander-plug family, sized for higher-draw portable equipment than the 16 A range. Its blue housing marks the 200-250 V single-phase rating, and the larger 2.5-10 mm² cable entry accommodates the heavier cable a 32 A circuit requires. Choose the PKE32M723 instead when IP67 sealing is needed.

Technical Details

Short Description
PratiKa wander plug, straight, 32A, 2P+E, 200-250V, IP44/IK08, screw terminals, blue voltage colour.
Rated Current (Ampere)
32 A
Rated Voltage (VAC)
200-250 V
Mounting Type
Portable (wander plug)
Protection Type
IP44
Catalog No
PKE32M423
Delivery Date (Days)
30 days
Model Number
PratiKa
Tariff Code
853669
