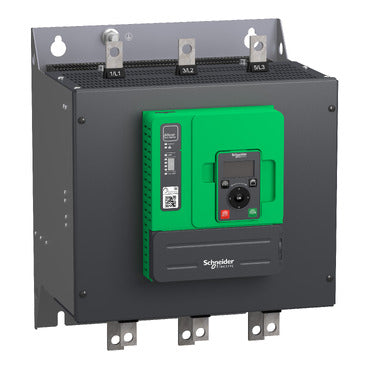

ATS480C25Y, ATS480 Series Soft Starter, 132 kW, 250 A, 208 to 690V AC

Schneider Electric ATS480 Soft Starter Series – Overview

Schneider Electric ATS480 soft starters are advanced motor control solutions designed to deliver smooth, controlled starting and stopping of asynchronous motors in demanding industrial environments. The ATS480 series focuses on reducing mechanical stress, limiting inrush current, and improving overall system reliability through intelligent control and integrated motor protection features. With robust design, advanced diagnostics, and flexible communication options, Schneider ATS480 soft starters are well suited for applications such as pumps, fans, compressors, conveyors, and process machinery. The ATS480 series supports energy-efficient motor operation while enhancing equipment lifespan and process stability across a wide range of industrial sectors.

Product Description: ATS480C25Y

The Schneider Electric ATS480C25Y is an ATS480-series motor soft starter rated for 250 A (normal duty) with a heavy-duty rating of 210 A at 40 °C. It is designed for three-phase supply voltages from 208 to 690 V AC and supports motor power ranges up to approximately 132 kW (400 V, inline) in normal duty conditions (with lower heavy-duty values specified). The ATS480C25Y features torque-based control for smoother torque ramping during industrial motor starting and includes built-in motor overload protection. This model is suitable for demanding process and infrastructure applications — pumps, large fans, compressors and conveyors — where reduced mechanical stress and inrush current limitation improve reliability and reduce maintenance. The unit is delivered in an IP00 enclosure and supports optional communication option cards (Modbus TCP/EtherNet‑IP, PROFINET, Profibus DP, CANopen) when fitted, enabling integration into automation networks.

Key Soft Starter Attributes

• Rated Operational Current (Ie): 250 A (normal duty); 210 A (heavy duty at 40 °C)
• Motor Power Range: Up to 132 kW at 400 V (normal duty); lower heavy-duty kW ratings apply (e.g., 110 kW at 400 V heavy duty)
• Supply Voltage: 208…690 V AC (50/60 Hz)
• Control Method: Torque control (soft starting with torque ramping)
• Built-in Bypass: No (internal bypass not provided)
• Motor Protection Functions: Integrated motor overload protection
• Communication Interfaces: Optional communication modules available (Modbus TCP/EtherNet‑IP, PROFINET, Profibus DP, CANopen)
• Enclosure / Protection Class: IP00
