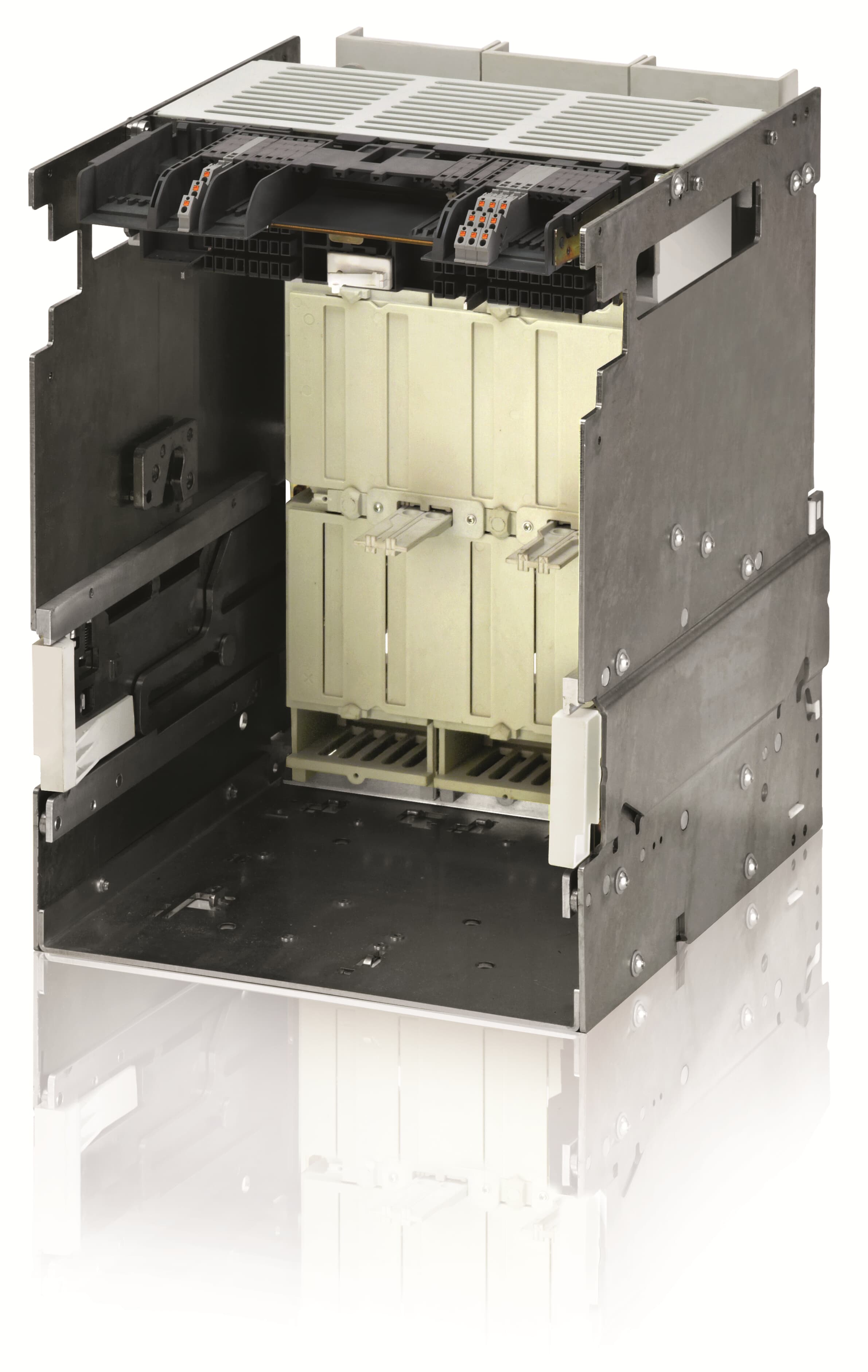

ABB 1SDA073909R1 E2.2 W FP Iu=2000 3p HR HR

This ABB air circuit breaker is presented as the unit identified by catalog number 1SDA073909R1 and the designation E2.2. As an ACB circuit breaker with a rated current indicated as Iu=2000 A and a three‑pole configuration (3p), this low voltage air circuit breaker is intended for use where a high continuous current rating and three‑phase protection are required. The product title and designation describe the exact variant being offered rather than a family of devices.

In low‑voltage power distribution, an industrial air circuit breaker such as this ABB air circuit breaker is typically installed in switchgear, motor control centers, or distribution panels to provide manual switching and thermal/magnetic or electronic trip protection for three‑phase feeders. The presence of the E2.2 designation indicates the specific trip/setting family for this unit as shown in the product identifier, and the 3p configuration aligns it with three‑phase feeder or bus protection duties where coordinated upstream and downstream protection is required.

• Brand: ABB
• SKU / Catalog Number: 1SDA073909R1
• Product Series / Designation: E2.2
• Rated current (Iu): 2000 A
• Number of poles: 3p
• Full product title: ABB 1SDA073909R1 E2.2 W FP Iu=2000 3p HR HR

Application areas for this ABB 1SDA073909R1 ACB circuit breaker include three‑phase distribution feeders, main and sub‑main switchgear where a 2000 A continuous rating is required, and industrial panels that require the specific E2.2 trip characteristic shown in the product designation. Use cases include protecting large motor feeders, transformer outgoing feeders, and main bus sections in commercial and industrial power distribution systems that accept a three‑pole, 2000 A low voltage air circuit breaker with the E2.2 trip arrangement.
