ATS01N206QN, ATS01 Series Soft Starter, 2,2 kW, 6 A, 380 to 415V AC
€109,45
- Description
Schneider Electric ATS01 Soft Starter Series – Overview
Schneider Electric ATS01 soft starters are compact and cost-effective motor starting solutions designed for basic soft starting of asynchronous motors in standard industrial applications. The ATS01 series focuses on reducing mechanical stress and limiting starting current during motor acceleration, offering a simple and reliable alternative to direct-on-line starting. With a straightforward design and minimal configuration requirements, ATS01 soft starters are well suited for pumps, fans, compressors, and other simple motor-driven machines where basic motor starting control is sufficient.
Product Description: ATS01N206QN

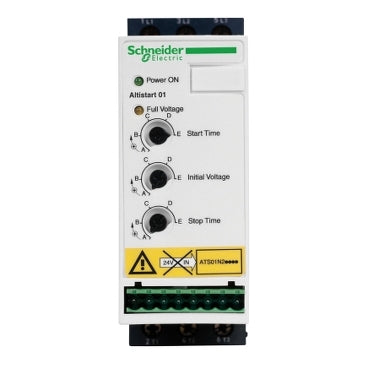

The Schneider Electric ATS01N206QN is a compact ATS01 series soft starter rated for 6 A continuous current and intended for three-phase supply voltages in the 380–415 V AC range. It is specified to control small asynchronous motors in the approximate power range of 1.5 kW to 2.2 kW (typical 2.2 kW at 400/415 V). The unit provides voltage ramp soft-start and soft-stop functionality with adjustable start and stop times (commonly 1…10 s), letting you limit inrush current and reduce mechanical stress on pumps, fans and light-duty compressors. The ATS01N206QN is a no-frills, DIN-mountable soft starter with IP20 protection, simple front potentiometer adjustments (start time, stop time, start voltage threshold), status LEDs and basic I/O for run/stop and BOOST functions plus an end-of-start/stop relay output—features that make it suitable for straightforward industrial motor starting tasks where compact size and ease of setup are priorities.
Key Soft Starter Attributes
- Rated Operational Current (Ie): 6 A
- Motor Power Range: ~1.5 kW – 2.2 kW (at 380–415 V AC)
- Supply Voltage: 3 × 380…415 V AC
- Control Method: Voltage ramp (soft start / soft stop)
- Motor Protection / Control Functions: Adjustable start/stop ramp, start voltage threshold, BOOST function, end-of-start relay output
- Control I/O: Logic inputs for Run/Stop and BOOST; logic output and one relay output (end-of-start / motor at standstill)
- Enclosure / Protection Class: IP20
Frequently Asked Questions (FAQ)
What supply voltage does the Schneider ATS01N206QN require?
The ATS01N206QN is designed for three-phase supplies in the 380–415 V AC range.
What motor sizes is the ATS01N206QN suitable for?
It is intended for small asynchronous motors around 1.5 kW up to 2.2 kW (typical rating at 400/415 V).
What is the rated current of this soft starter?
The rated operational current is 6 A (at 40 °C ambient as specified by the product documentation).
Can I adjust start and stop behaviour on the ATS01N206QN?
Yes. The unit provides adjustable start and stop ramp settings (commonly 1…10 seconds) and an adjustable start-voltage threshold plus a BOOST input for torque boost during start.
