Part number
1SDA072642R1
Model no
E6.2H
$18,188.08 On request Dispatch — · From TürkiyeGet a Quote

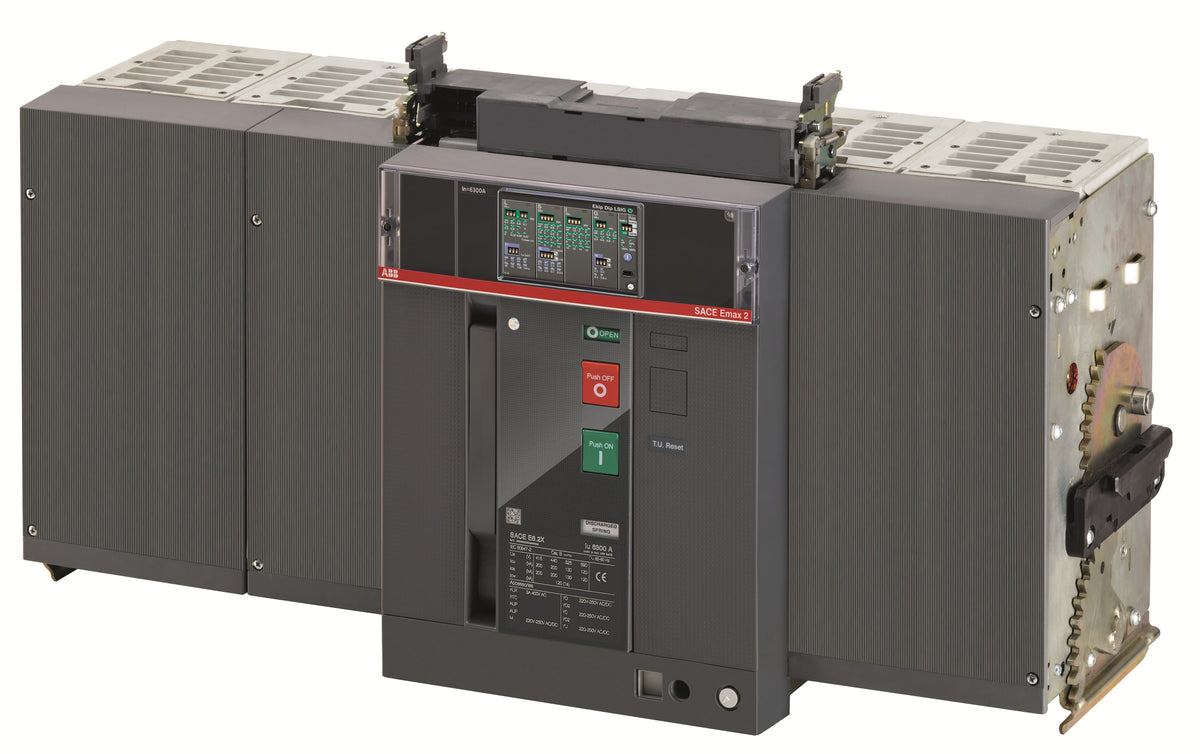

ABB 1SDA072642R1 E6.2H 6300 Ekip Dip LSI 3p WMP 100kA Air Circuit Breaker

SACE Emax 2 E6.2H ACB, 6300 A, 100 kA Icu, 3-pole, Ekip Dip LSI, WMP.

Rated current
6300 A
Rated operational voltage
690 V AC
Poles
3P
Breaking capacity
100 kA
EAN
8015644764920
Description

About the E6.2H

This E6.2H 6300 Ekip Dip LSI 3p WMP item — ABB order code 1SDA072642R1 — is the drawout moving part for a SACE Emax 2 E6.2H air circuit breaker, 6300 A rated with 100 kA breaking capacity at 400 V AC. Fitted with the Ekip Dip LSI electronic release across 3 poles, it is meant to be withdrawn from and racked back into its 690 V AC cradle for maintenance or replacement.

Selection Notes

Racked into an E6.2H cradle, this 6300 A moving part delivers 100 kA breaking capacity. Its Ekip Dip LSI release adds the S function (L (overload, long-time), S (short-time delay), I (instantaneous)) on top of the base L and I protections. The adjustable short-time delay lets it hold through a downstream fault long enough for a smaller breaker to clear first, which is why this release is specified for incomer and bus-tie positions rather than the end of a feeder run. Pick the Ekip Dip LI sibling at the same 6300 A rating when the breaker sits further downstream and instantaneous clearing is acceptable. The H performance level holds a flat 100 kA breaking capacity from 400 V through 690 V AC; where the calculated fault level at this point exceeds that, the V-class sibling at 150 kA (400-440 V AC) is the one to specify instead.

Specification

Full specification

57 values · Last verified 02 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 803 mm
Product Net Height 425 mm
Product Net Depth / Length 383 mm
Product Net Weight 120 kg

Additional Information 4

Product Main Type SACE Emax 2
Product Name Air Circuit Breaker
Product Type Air Circuit Breaker
Version W
Show all 57 specifications ↓ Show less ↑48 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA072642R1
Type designation E6.2H
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644764920
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 23

Connecting Capacity 6000 mm²
Current Type AC
Electrical Durability Ue =< 440 V 2000 cycle, Ue = 500 ... 690 V 2000 cycle, 10 cycles per hour
Mechanical Durability 12000 cycle, 60 cycles per hour
Number of Poles 3P
Power Loss 1550 W
Rated Current (In) 6300 A
Rated Impulse Withstand Voltage (Uimp) acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui) AC 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 100 kA, (230 V AC) 100 kA, (380 V AC) 100 kA, (400 V AC) 100 kA, (415 V AC) 100 kA, (440 V AC) 100 kA, (500 V AC) 100 kA, (660 V AC) 100 kA, (690 V AC) 100 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) 100 %
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 100 kA, for 3 s 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (400 V AC) 100 kA, (415 V AC) 100 kA, (440 V AC) 100 kA, (500 V AC) 100 kA, (525 V AC) 100 kA, (690 V AC) 100 kA
Rated Uninterrupted Current (Iu) 6300 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver M12
Release Ekip Dip LSI
Release Type EL
Short-Circuit Performance Level H
Standards IEC
Sub-type E6.2
Suitable for IT Networks Yes, 690V

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39121615
WEEE Category 4. Large Equipment (Any External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 515 mm
Package Level 1 Height 610 mm
Package Level 1 Depth / Length 1000 mm
Package Level 1 Gross Weight 129 kg
Package Level 1 EAN 8015644764920
Shipping weight 120.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 02 Oct 2026

Documents

Documents for 1SDA072642R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC
Quick answers

Questions about the E6.2H

What is the rated current of E6.2H?

The rated current of E6.2H is 6300 A.

Which supply voltage is E6.2H rated for?

The rated operational voltage of E6.2H is 690 V AC.

What is the HS code of E6.2H for customs?

The tariff (HS) code on file for E6.2H is 853620.

What is the EAN of E6.2H?

The EAN (GTIN) of E6.2H is 8015644764920.

Where does E6.2H ship from, and how fast?

E6.2H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
