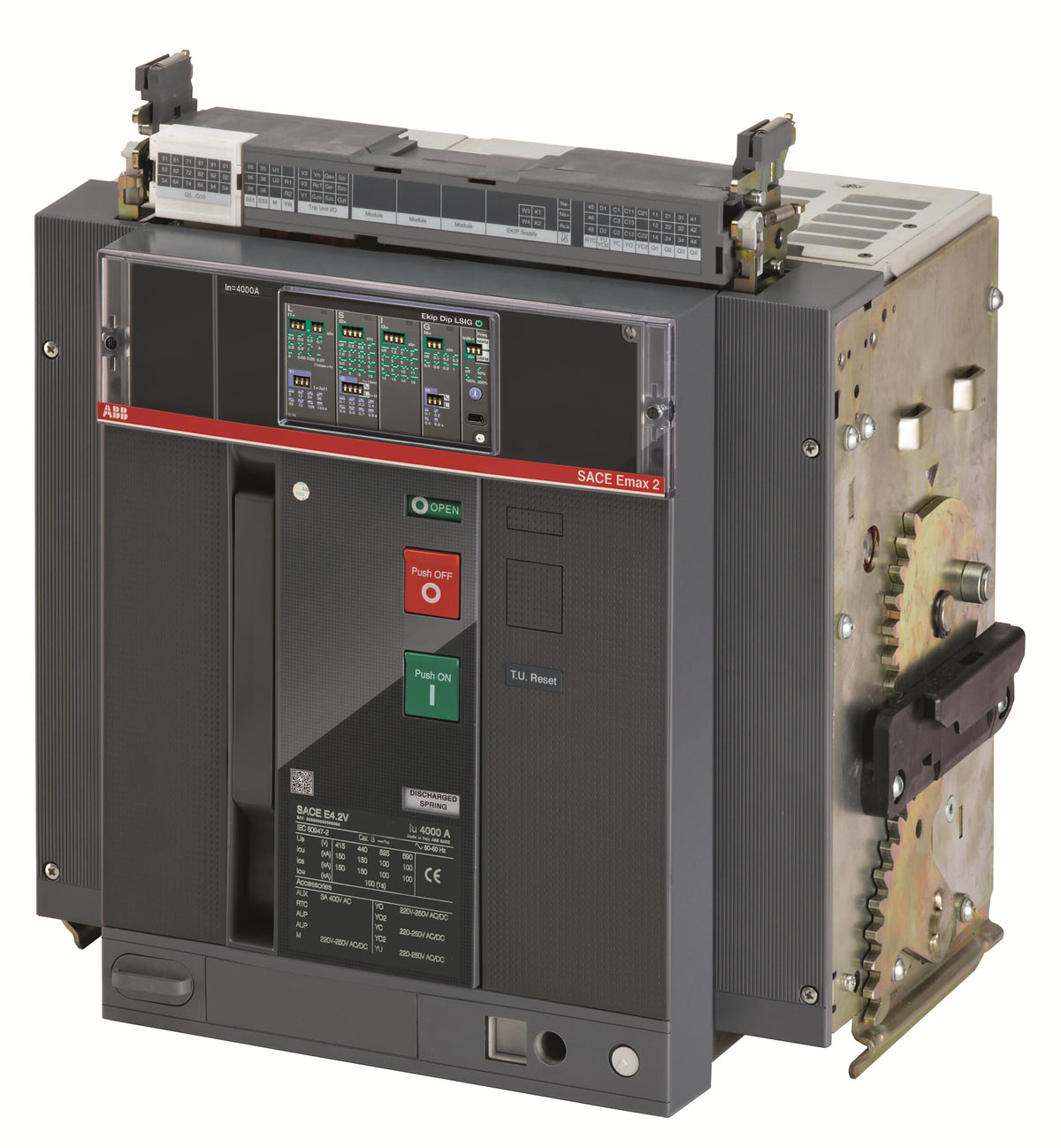

ABB 1SDA072542R1 E4.2N 4000 Ekip Dip LSI 3p WMP 66kA Air Circuit Breaker

ABB 1SDA072542R1 SACE Emax 2 E4.2N 4000 Ekip Dip LSI 3p WMP, 4000 A, 66 kA Icu at 400 V, 3-pole.

Rated current
4000 A
Rated operational voltage
690 V AC
Poles
3P
Breaking capacity
66 kA
EAN
8015644763923
Description

About the E4.2N

The ABB 1SDA072542R1 is the withdrawable moving part (WMP) of a SACE Emax 2 E4.2N 4000 Ekip Dip LSI 3p air circuit breaker, the standard (N-class) variant of the E4.2 frame, 3-pole. Rated 4000 A (Iu) and 66 kA Icu at 400 V AC, it carries an electronic Ekip Dip LSI release for overload (L), short-time delayed (S) and instantaneous (I) short-circuit protection; a separate fixed part (cradle) is required for installation.

Selection Notes

At 4000 A rated current, this is the 4000 A variant of the E4.2 frame — the frame's 3200 A sibling is the lower-current option where full 4000 A continuous loading is not required. The N performance class caps Icu at 66 kA (400 V) with a 66 kA/1 s Icw, the lowest short-circuit rating in the E4.2 frame — the S-class and H-class siblings cover installations needing a higher Icw for selective coordination. The Ekip Dip LSI release adds S (short-time delay) to overload and instantaneous protection, letting the short-time delay be coordinated with downstream breakers instead of tripping instantaneously on every fault. In the 3-pole configuration, this unit suits a 3-wire distribution; choose the 4p sibling instead for a neutral-switching circuit. This order code is the draw-out moving part only: it needs a matching fixed part (cradle) already installed, which makes it the correct choice for replacing a worn breaker body or equipping a double-breaker (one cradle, two moving parts) arrangement rather than a first-time installation.

Specification

Full specification

57 values · Last verified 02 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 425 mm
Product Net Height 425 mm
Product Net Depth / Length 383 mm
Product Net Weight 60 kg

Additional Information 4

Product Main Type SACE Emax 2
Product Name Air Circuit Breaker
Product Type Air Circuit Breaker
Version W
Show all 57 specifications ↓ Show less ↑48 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA072542R1
Type designation E4.2N
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644763923
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 23

Connecting Capacity 4000 mm²
Current Type AC
Electrical Durability Ue =< 440 V 5000 cycle, Ue = 500 ... 690 V 4000 cycle, 20 cycles per hour
Mechanical Durability 15000 cycle, 60 cycles per hour
Number of Poles 3P
Power Loss 900 W
Rated Current (In) 4000 A
Rated Impulse Withstand Voltage (Uimp) acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui) AC 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 66 kA, (230 V AC) 66 kA, (380 V AC) 66 kA, (400 V AC) 66 kA, (415 V AC) 66 kA, (440 V AC) 66 kA, (500 V AC) 66 kA, (660 V AC) 66 kA, (690 V AC) 66 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) 100 %
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 66 kA, for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (400 V AC) 66 kA, (415 V AC) 66 kA, (440 V AC) 66 kA, (500 V AC) 66 kA, (525 V AC) 66 kA, (690 V AC) 66 kA
Rated Uninterrupted Current (Iu) 4000 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver M12
Release Ekip Dip LSI
Release Type EL
Short-Circuit Performance Level N
Standards IEC
Sub-type E4.2
Suitable for IT Networks Yes, 690V

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39121615
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 515 mm
Package Level 1 Height 610 mm
Package Level 1 Depth / Length 615 mm
Package Level 1 Gross Weight 67 kg
Package Level 1 EAN 8015644763923
Shipping weight 60.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 02 Oct 2026
