Part number
1SDA072321R1
Model no
E2.2H
$3,589.27 On request Dispatch — · From TürkiyeGet a Quote

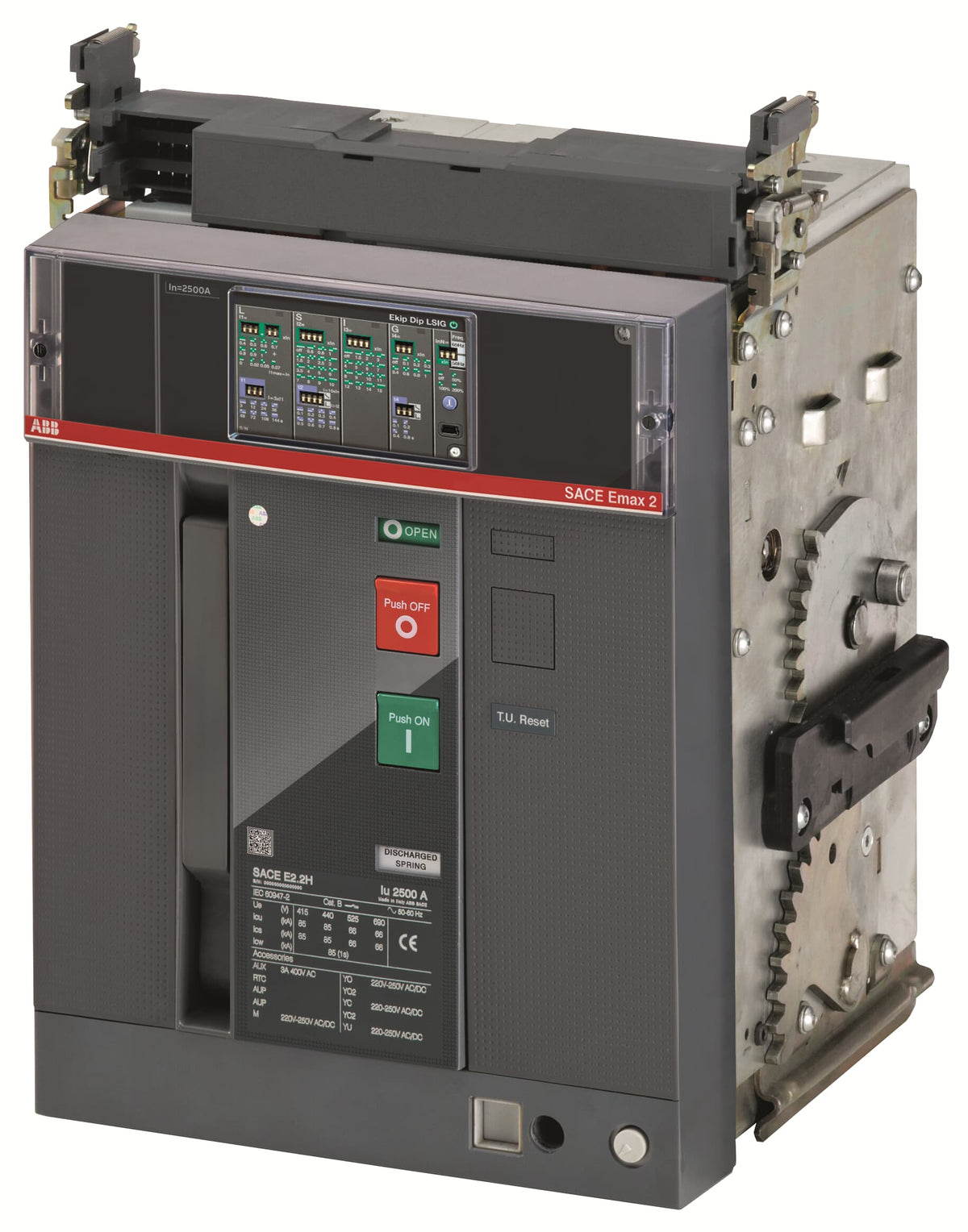

ABB 1SDA072321R1 E2.2H 1250 Ekip Dip LI 3p WMP 100kA Air Circuit Breaker

ABB 1SDA072321R1 - SACE Emax 2 E2.2H 1250 Ekip Dip LI 3p WMP moving part, 1250A, 100 kA Icu.

Rated current
1250 A
Rated operational voltage
690 V AC
Poles
3P
Breaking capacity
100 kA
EAN
8015644761714
Description

About the E2.2H

ABB's 1SDA072321R1 is the moving part only of a three-pole SACE Emax 2 E2.2H 1250 Ekip Dip LI air circuit breaker, requiring a separate fixed part for installation. It shares the H-level 100 kA breaking capacity (Icu) at 400 V AC and 85 kA short-time withstand (Icw) of the fixed version, while allowing draw-out isolation for maintenance without disturbing the busbar connections.

Selection Notes

This WMP moving part carries the same 100 kA Icu and 1250 A rating as the fixed version but requires a separate fixed cradle - the choice for a withdrawable installation where the breaker needs to be drawn out for maintenance without de-energizing the busbars. The LI release trips instantaneously rather than holding a short-time delay stage. Icw is 85 kA for 1 s, dropping to 66 kA for 3 s.

Specification

Full specification

57 values · Last verified 02 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 317 mm
Product Net Height 425 mm
Product Net Depth / Length 383 mm
Product Net Weight 48 kg

Additional Information 4

Product Main Type SACE Emax 2
Product Name Air Circuit Breaker
Product Type Air Circuit Breaker
Version W
Show all 57 specifications ↓ Show less ↑48 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA072321R1
Type designation E2.2H
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644761714
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 23

Connecting Capacity 1200 mm²
Current Type AC
Electrical Durability Ue =< 440 V 15000 cycle, Ue = 500 ... 690 V 15000 cycle, 30 cycles per hour
Mechanical Durability 25000 cycle, 60 cycles per hour
Number of Poles 3P
Power Loss 176 W
Rated Current (In) 1250 A
Rated Impulse Withstand Voltage (Uimp) acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui) AC 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 100 kA, (230 V AC) 100 kA, (380 V AC) 100 kA, (400 V AC) 100 kA, (415 V AC) 100 kA, (440 V AC) 100 kA, (500 V AC) 85 kA, (660 V AC) 85 kA, (690 V AC) 85 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) 100 %
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 85 kA, for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (400 V AC) 100 kA, (415 V AC) 100 kA, (440 V AC) 100 kA, (500 V AC) 85 kA, (525 V AC) 85 kA, (690 V AC) 85 kA
Rated Uninterrupted Current (Iu) 1250 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver M12
Release Ekip Dip LI
Release Type EL
Short-Circuit Performance Level H
Standards IEC
Sub-type E2.2
Suitable for IT Networks Yes, 690V

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39121615
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 515 mm
Package Level 1 Height 610 mm
Package Level 1 Depth / Length 515 mm
Package Level 1 Gross Weight 53 kg
Package Level 1 EAN 8015644761714
Shipping weight 48.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 02 Oct 2026

Documents

Documents for 1SDA072321R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC
Quick answers

Questions about the E2.2H

What is the rated current of E2.2H?

The rated current of E2.2H is 1250 A.

Which supply voltage is E2.2H rated for?

The rated operational voltage of E2.2H is 690 V AC.

What is the HS code of E2.2H for customs?

The tariff (HS) code on file for E2.2H is 853620.

What is the EAN of E2.2H?

The EAN (GTIN) of E2.2H is 8015644761714.

Where does E2.2H ship from, and how fast?

E2.2H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
